CP-286-HUB-G-CT-66 - Datasheet
MBA
Category Information

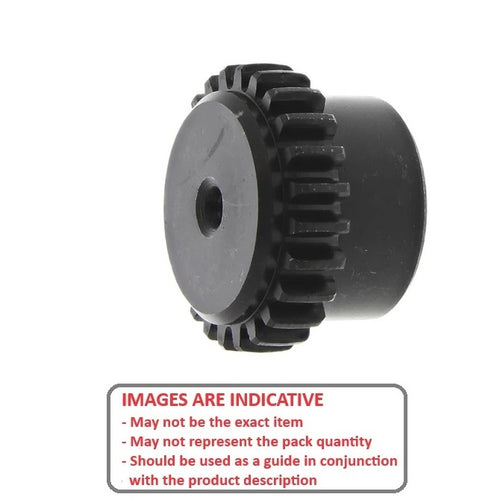

Couplings - Crowned Tooth Gear - Hubs OnlyHubs Only Crowned Tooth Gear Couplings. Match with sleeves from the sleeves category
- An expanded range may be available on special order. Please enquire.
- +/- 1.02 mm Axial Displacement.
- 0.41mm Parallel offset per hub.
- 1o Angular Displacement.
- Free axial movement. 19.55 to 88 Nm. 8500 to 14000 rpm.
- High torque / low inertia.
Product Data
- Bore
:
28.575
mm
(Equiv. 1.125 in.) - Bore
28.575
mm
(Equiv. 1.125 in.) - Sleeve OD
66.1
mm
(Equiv. 2.602 in.) - Description Hub Only
- Max Speed 8500 RPM
- Max Torque 781.000 n.m
- Hub. Config Set Screw

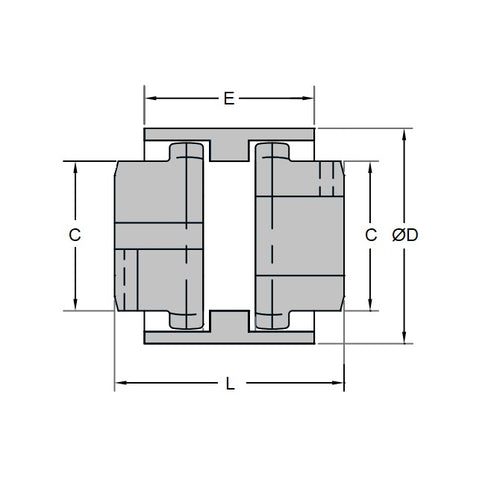

- Hub Diameter (C) 50.038 mm
- Hub Length (E) 35.560 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- GU214
- GU-214
