MLM-160M-051-CNP - Datasheet
MBA
Category Information

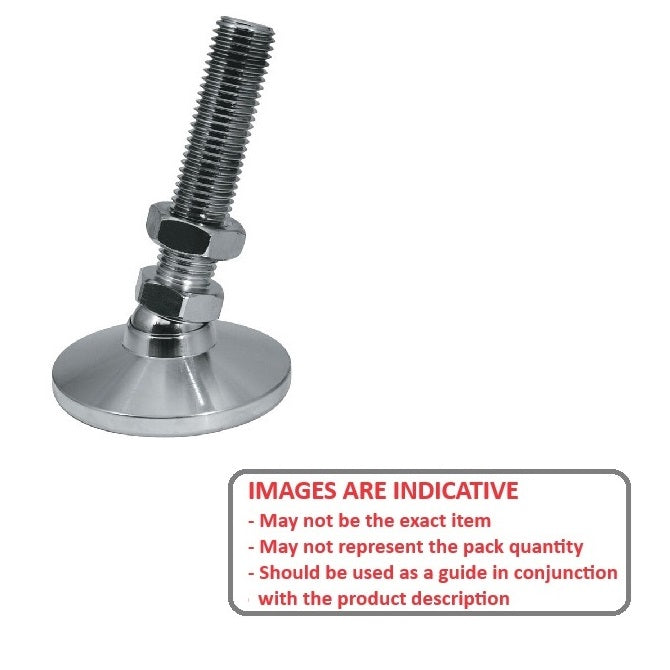

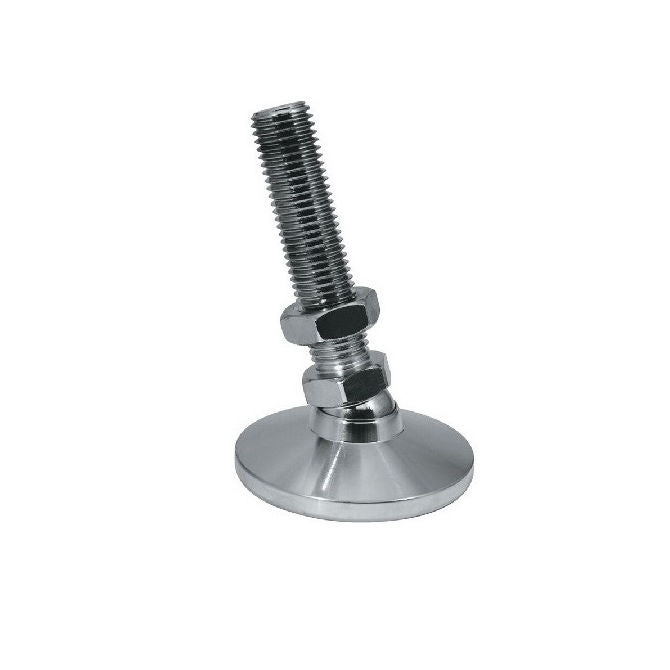

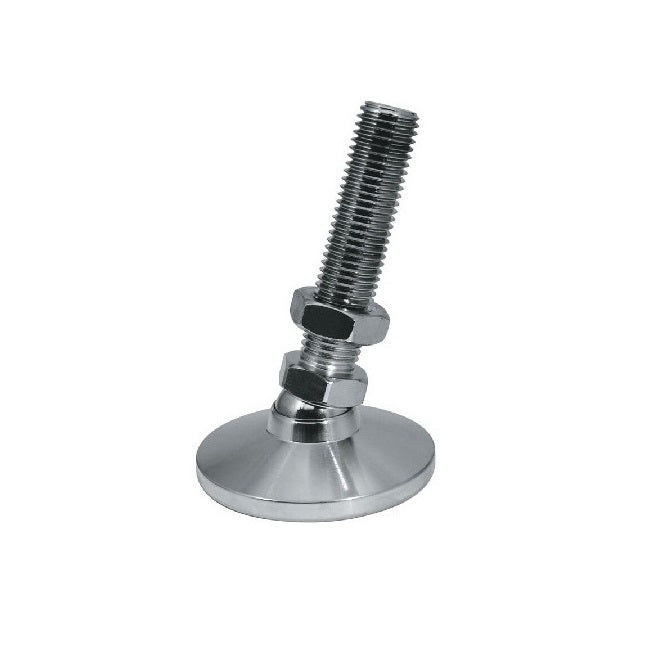

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.

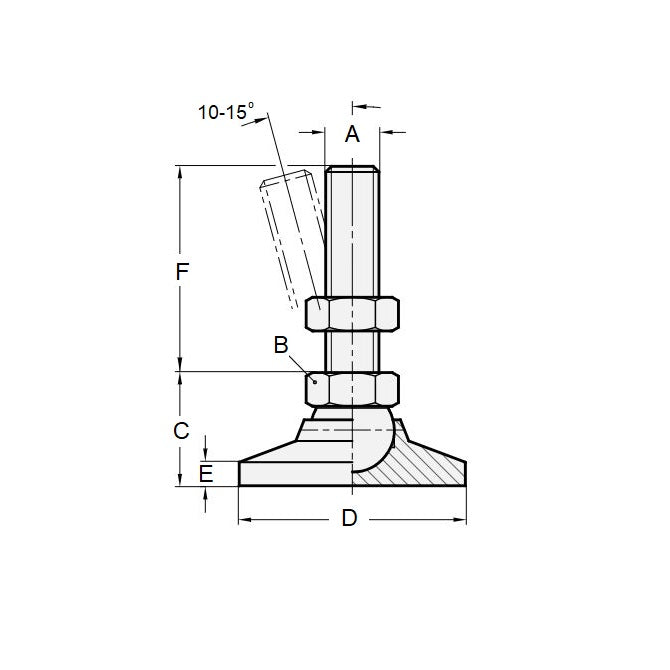

Product Data
- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
64.0
mm
(Equiv. 2.52 in.) - Foot Height (C)
32.0
mm
(Equiv. 1.26 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 8.00 mm
- Overall Height 83.0 mm
- Load Rating 2720 Kg
- Finish Nickel Plated
- Hex Flats (B) 24.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM2720M16NP
- HVTM-25N
- HVTM25N
