AC-2525-1 - Datasheet

C-JAC

Product Data

• Stroke : 25.0 mm
  (Equiv. 0.984 in.)
• Thread (C) M25x1.5
• Length (A) 155.5 mm
  (Equiv. 6.122 in.)
• Shaft Size (D) 8.0 mm
• Max. Effective Mass 200 Kg
• Max. Nm Per Cycle 80
• Max. Nm Per Hour 54000
• Max Impact Speed 4.0 m/s
• Weight 330 g
• Body Length (B) 101 mm
• Tip Length x Diameter (CxE) 22x19.5 mm

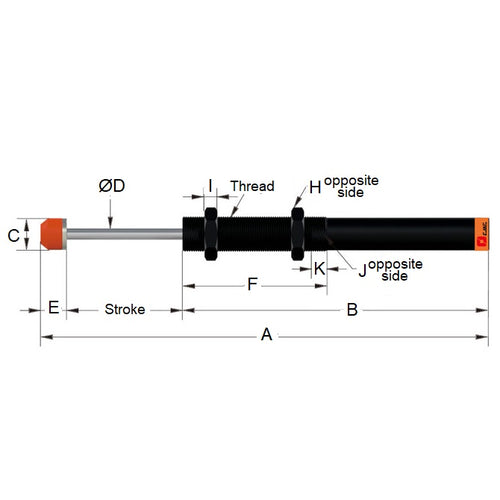

• Figure Figure 2.
