CS-2540-9144-34-M - Datasheet
MBA
Category Information

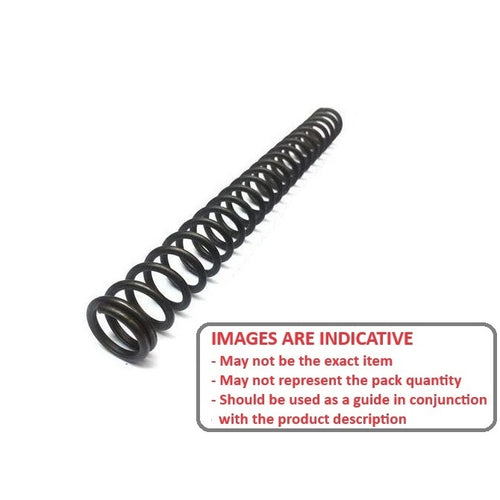

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
25.40
mm
(Equiv. 1 in.) - Free Length (L0)
914
mm
(Equiv. 35.984 in.) - Wire Diameter (d)
3.43
mm
(Equiv. 0.135 in.) - Rate (P/f) 40.6 N/mm
- Approx. ID 18.5 mm
- End Type Closed
- Material Music Wire
Product Compliance and Data
Additional Resources
Cross References
- 9622K33
- S-226
- S226
