CCI-02540-S15 - Datasheet
MBA
Category Information

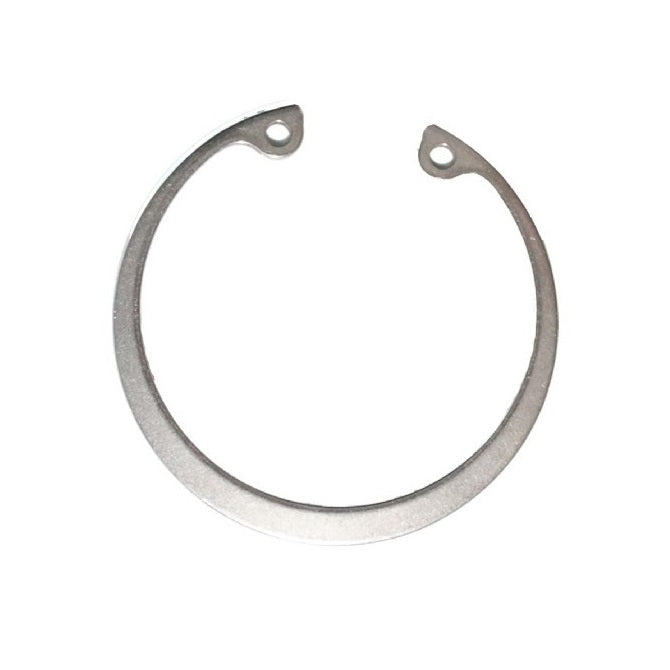

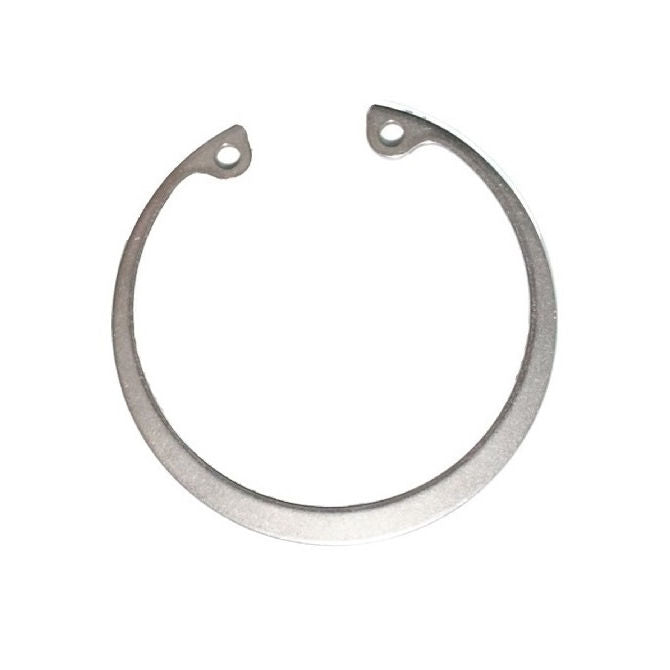

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.) - Groove Dia. (Dg)
27.08
mm
+ 0.00 / - 0.06
(Equiv. 1.066 in.) - Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
- Groove Width (W) 1.17 mm + 0.08 / - 0.00
- Clearance in Bore (C) 17.27 mm
- Clearance in Groove (C1) 18.80 mm
- Min. Lug Diameter (h) 1.52 mm
- Min. Extension (n) 2.51
- Standard MIL-16625
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 91580A211
- NoCor HO-100-SS
- Small Parts RIX-16
- HO100SS
- RIX16
- N1300-0100BDS
- N13000100BDS
