RS-100-S02 - Datasheet

MBA

Category Information

Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

Stainless Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Stainless Steel.

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 25.40 mm
  • Clip Thickness (T) 0.94 mm +/- 0.05
    (Equiv. 0.037 in.)
  • Groove Dia. (Dg) 24.31 mm
  • Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33
  • Radial Wall (S) Approx. 1.91 mm +/- 0.11
  • Groove Width (W) 1.11 mm +/- 0.07
  • Approx. Loose Clip OD 27.7 +/- 0.03
  • Groove Depth (d) 0.53
  • Material Stainless Steel 302/304 (Similar to A2 or 18-8)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 93513A150
  • Huyett® RS-100-S02
  • Smalley® RS-100-S02
  • Spirolox® RS-100-S02
  • Smalley® WS-100-S02
  • RS100S02
  • WS100S02
View full details

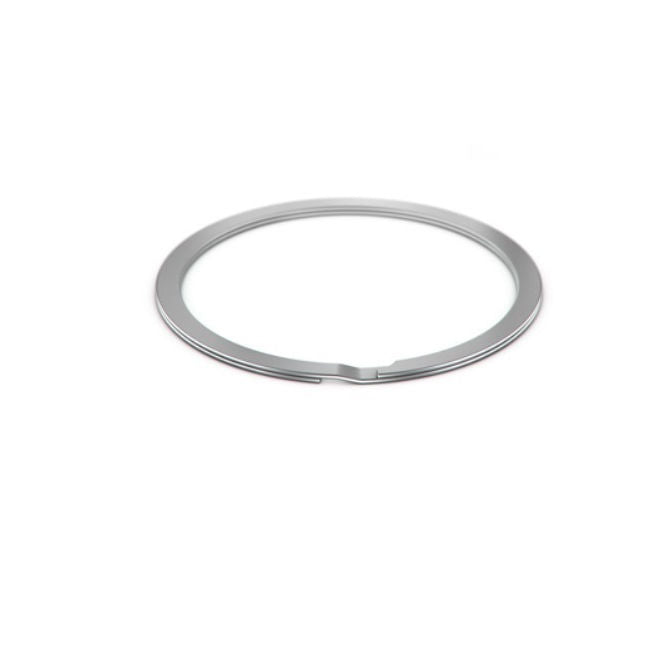

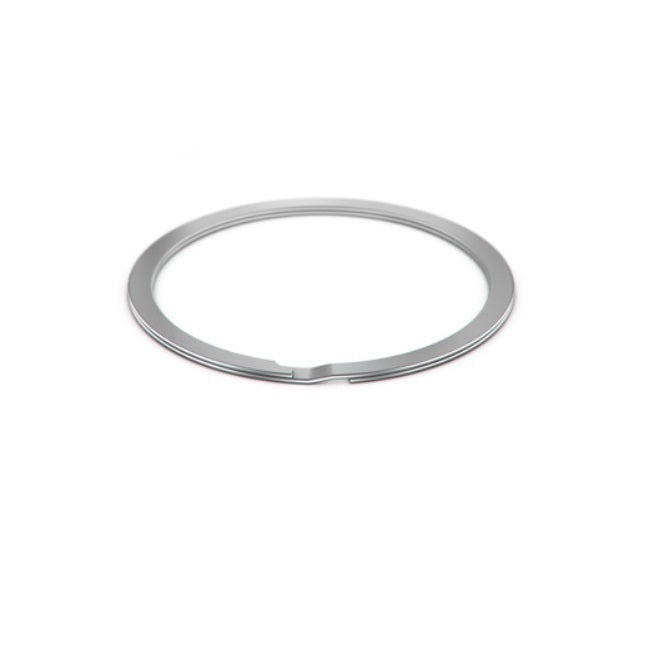

RS-100-S02DiagramRS-100-S02Image
