RNAST20 - Datasheet

MBA

Category Information

Rollers - Track - Without Inner race

Without Inner race Track Rollers. This is the main category in this series

    Product Data

    • ID (d) : 25.00 mm
    • O.D. (D) 47.00 mm
    • Width (C) 15.80 mm
    • Inner Ring Width (B) 16.00 mm
    • OD Type Cylindrical
    • Dynamic Load Rating 1980.00 kgf
    • Static Load Rating 2500.00 kgf
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® RNAST-20
      • RNAST20
      View full details

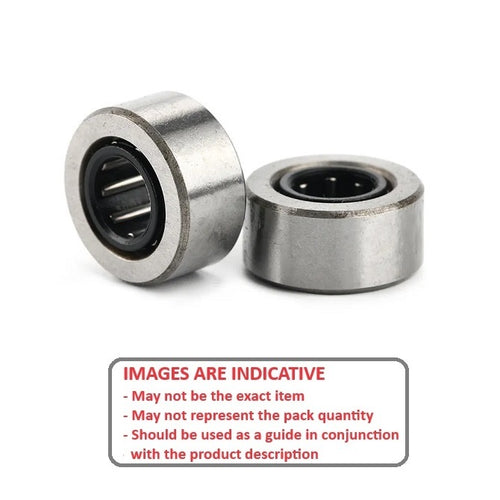

      RNAST20Image
