IDC-67RS - Datasheet
MBA
Category Information

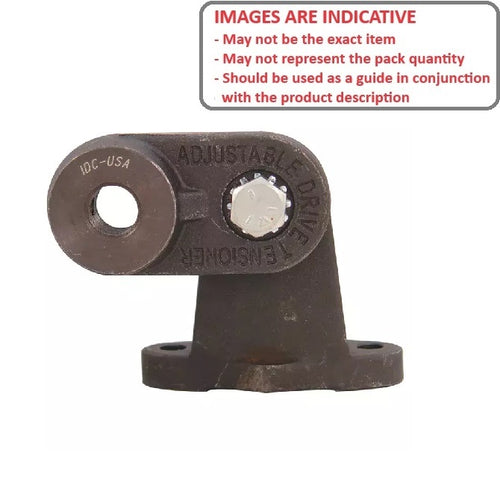

Tensioner - Drive - Adjustable Angle - PlainPlain Adjustable Angle Drive Tensioner. Use with idler shafts and idler pulleys. Fixed base with adjustable arm through 360o.
- Idler shaft and pulleys not included with tensioner

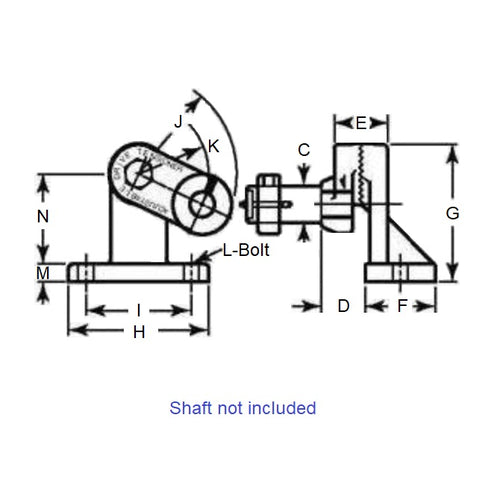

Product Data
- Bore (C)
:
25.400
mm
(Equiv. 1 in.) - Arm Width (D)
31.750
mm
(Equiv. 1.25 in.) - E
38.100
mm
(Equiv. 1.5 in.) - Plate Width (F) 50.800 mm
- Overall Height (G) 101.600 mm
- Overall Width (H) 101.600 mm
- Bolt Centres (I) 76.200 mm
- Centre of Mount to End (J) 76.200 mm
- Centre of Mount to Bore (K) 50.800 mm
- Bolt Size (L) 3/4-16 x 9.53
- M / N 12.7 / 63.5 mm
- Approx Weight 1.42 Kg
