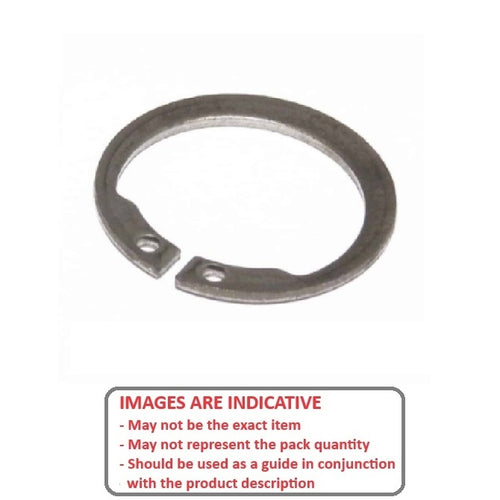

Retaining Rings - External - Circlips - Inverted

Inverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
  • Less thrust load than standard circlips.

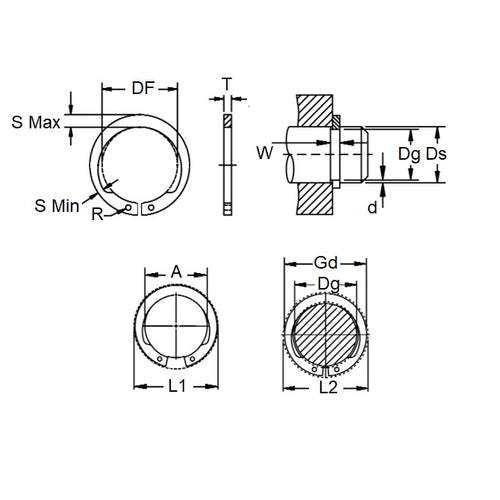

Product Data

  • Shaft Diameter (Ds) : 25.40 mm
    (Equiv. 1 in.)
  • Clip Thickness (T) 1.07 mm +/- 0.076
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 23.52 mm +/- 0.051
    (Equiv. 0.926 in.)
  • Approx. Loose Circlip ID (A) 23.50 mm
  • Radial Wall (S) min/max 1.83 mm
  • Groove Width (W) 1.17 mm + 0.10 / - 0.00
  • Tool PRS-E047
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • N1408-0100KSF
  • N14080100KSF
