G013B-025-D48-032-048-AL-G - Datasheet
MBA
Category Information
Gears - Spur - Hubbed - 48DP - 20 Degree - AluminiumAluminium 20 Degree 48DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.5292 (1/48 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 48 teeth
- 48 Diametrical Pitch. Approx 1.66mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

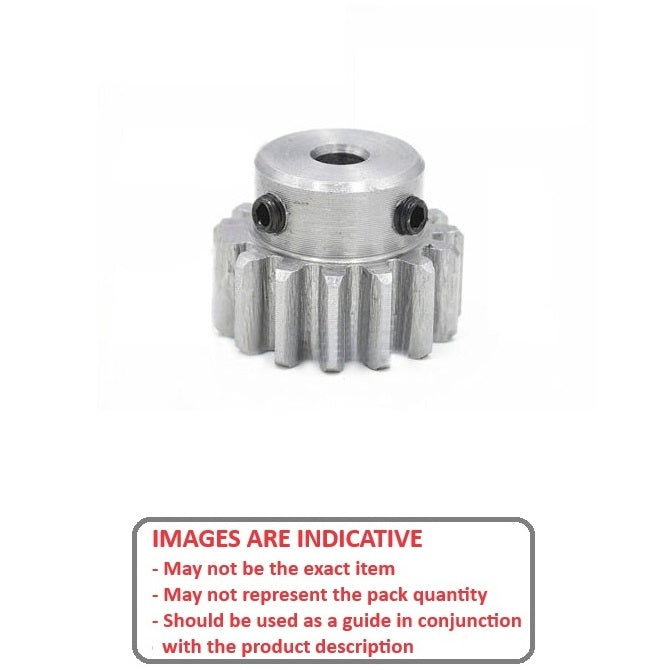

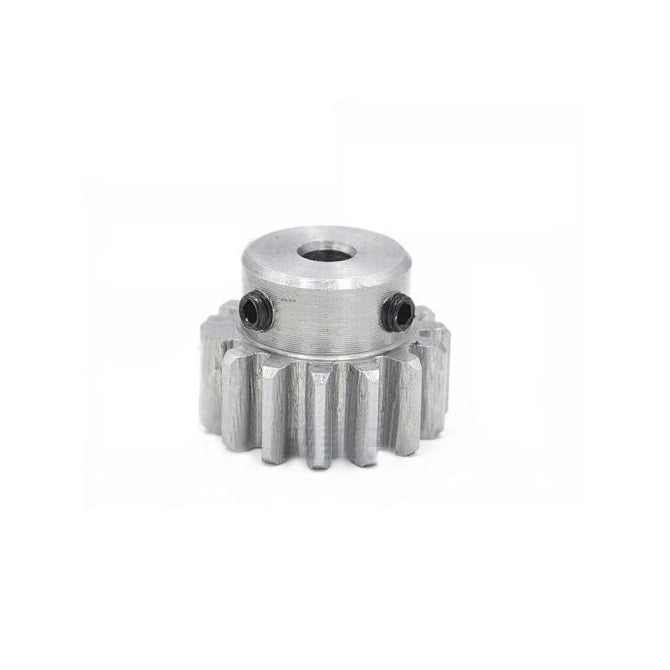

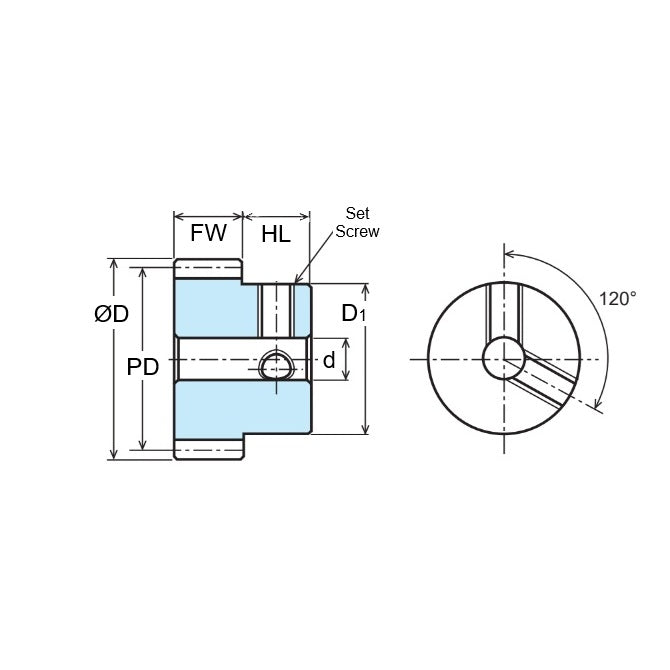

- Number of Teeth : 25
- Pitch Circle Diameter (PD)
13.23
mm
(Equiv. 0.521 in.) - Bore (d)
4.762
mm
(Equiv. 0.187 in.) - Outside Diameter (OD) 14.277 mm
- Face Width (FW) 3.18 mm
- Type Hubbed
- Hub Diameter (D1) 9.53 mm
- Hub Projection (HL) 5.54 mm
- Locking Method Set Screw
- Quality AGMA Q10
- Material Aluminium Alloy 2024
Product Compliance and Data
Additional Resources
Cross References
- G013B25D48032048ALG
