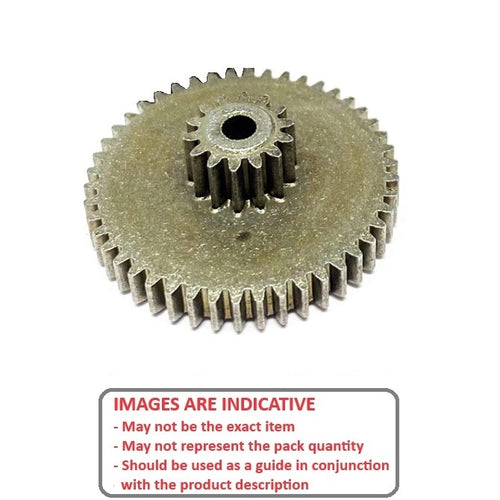

GCL-013-M05-060-024-B - Datasheet
MBA
Category Information
Gears - Cluster Module 0.5 BrassCluster Module 0.5 Brass Gears. This is the main category in this series
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

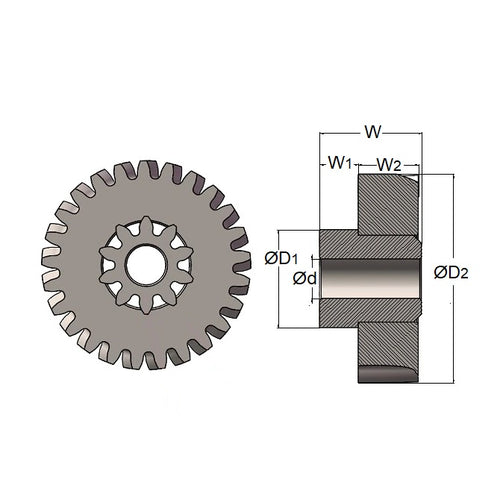

- Number of Teeth : 25 and 10
- Pitch Diameter Large - Small
12.5 - 5.0
mm
(Equiv. 0.492 in.) - Outside Diameter Large - Small
13.0 - 5.5
mm
(Equiv. 0.512 in.) - Bore 2.38 mm
- Face Width Large / Small 2.2 / 3.8 mm
- Overall Width 6.0 mm
- Hub Diameter None mm
- Hub Projection None mm
- Other Information No grub screws or hub. Mounting will usually be achieved by using an adhesive.
- Quality Hobby Quality
- Material Brass and Steel
