REM-250-L-CB-240 - Datasheet
MBA
Category Information

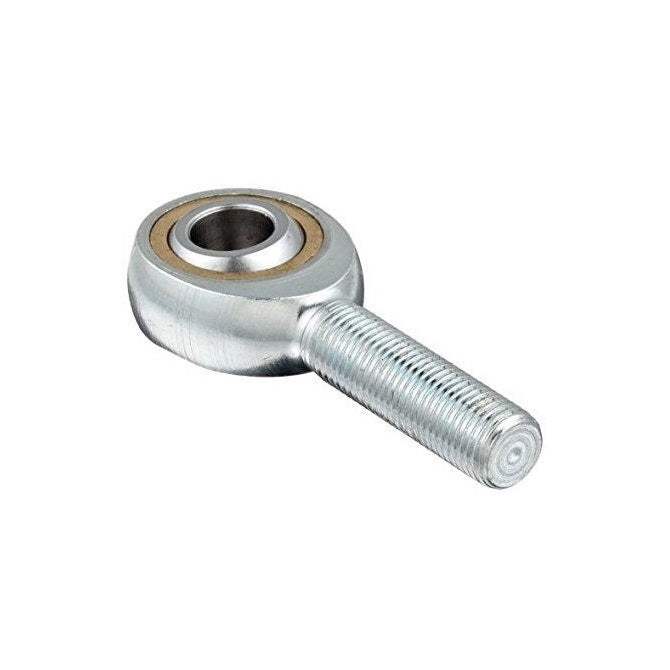

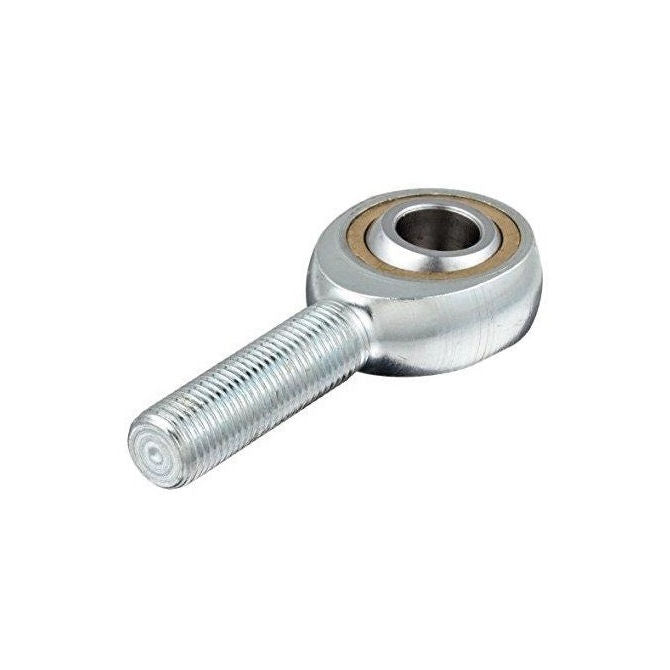

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

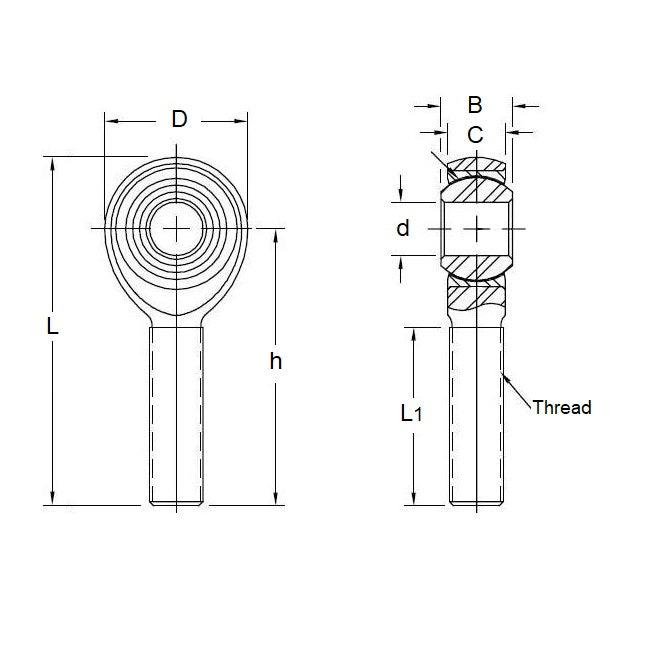

Product Data
- Eye Size (d1)
:
25
mm
(Equiv. 0.984 in.) - Overall Length (L)
122.00
mm
(Equiv. 4.803 in.) - Thread Size M24x2 Left
- Min. Thread Length (l2) 57.00 mm
- Head Width (W) 22.00 mm
- Eye Width (W1) 31.00 mm
- Head Diameter (D) 56.00 mm
- Centre Height (l1) 94.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI JAM25L
- KWK KM25L
- IKO POS25L
- Nachi POS-25L
- NTN SMI-25L
- SMI25L
