CCI-02400-C-V - Datasheet
MBA
Category Information

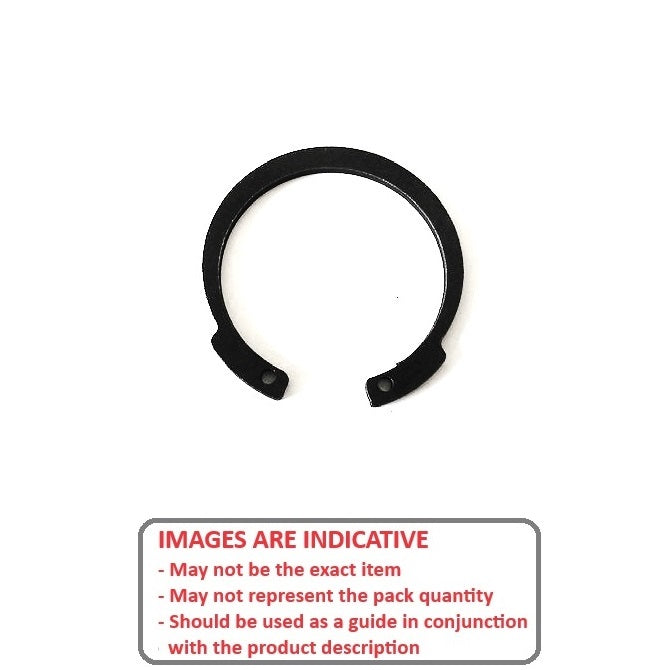

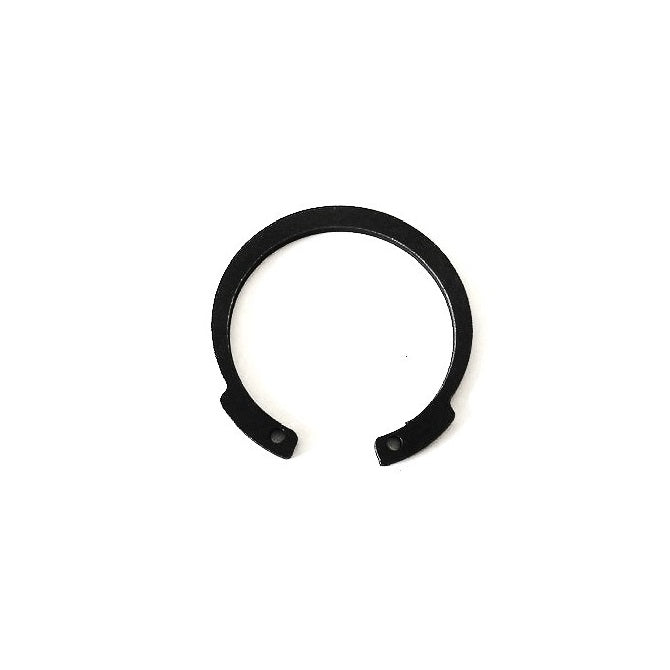

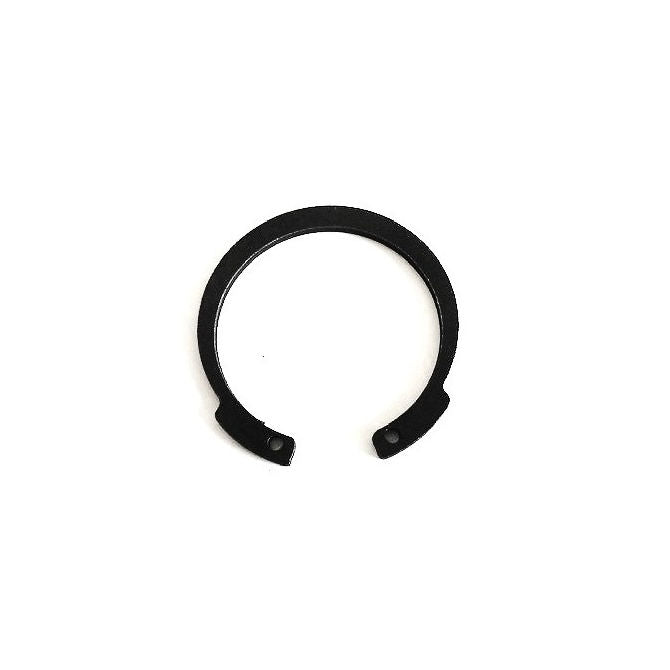

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

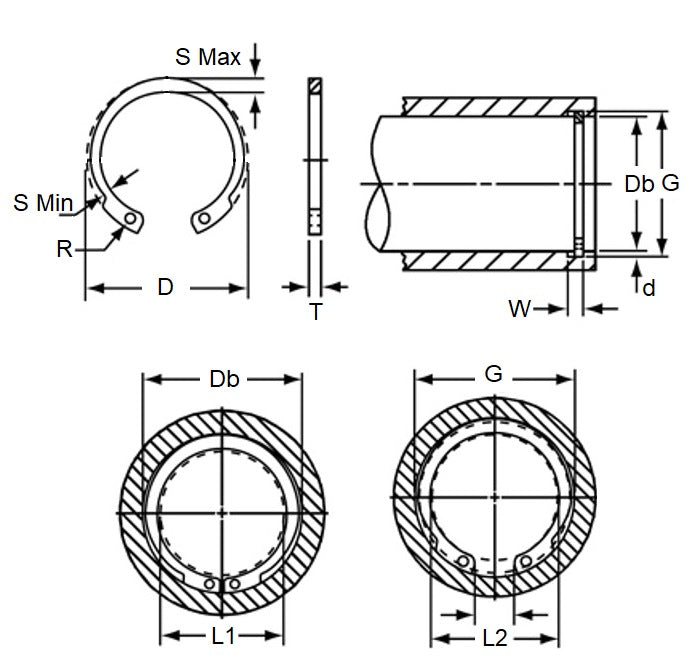

Product Data
- Housing Bore (B)
:
24.00
mm
(Equiv. 0.945 in.) - Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.) - Groove Dia. (Dg)
25.20
mm
+ 0.00 / - 0.06
(Equiv. 0.992 in.) - Approx. Loose Circlip OD (Dr) 26.11 mm + 0.42 / - 0.21
- Radial Wall Max (S) 2.7 - 2.9
- Groove Width (W) 1.10 mm
- Tool PRS-I011
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-024
- Ellison INTV-024
- Seeger JV-024
- NoCor MDHOI-024
- MDHOI024
- JV024
- INTV024
- M13080240APP
- M1308-0240APP
- BN830024
