MSM-048F-025-S3AB - Datasheet
MBA
Category Information

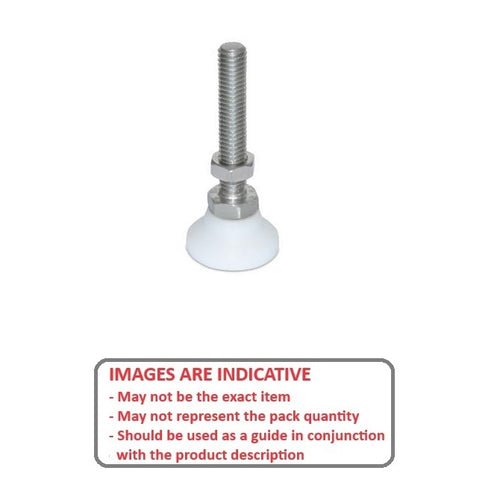

Mounts - Levelling Studded - Swivel - 303 Stainless - Acetal BaseAcetal Base 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 10-32 UNF (4.76mm)
- Base Diameter (D)
19.1
mm
(Equiv. 0.752 in.) - Foot Height (C)
13.5
mm
(Equiv. 0.531 in.) - Thread Length (F) 25.4 mm
- Base Height (E) 2.77 mm
- Overall Height 38.9 mm
- Load Rating 240 Kg
- Pad Material Delrin
- Hex Flats (B) 9.525 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSM0240048FS3A
- TD-00SS
- TD00SS
