CS-2426-2540-20-M - Datasheet

MBA

Category Information

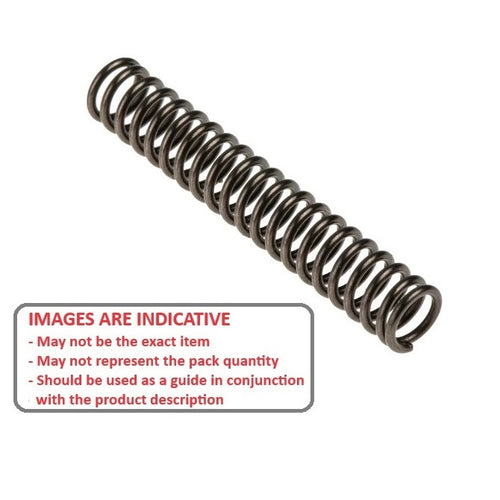

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 24.26 mm +/- 0.51
    (Equiv. 0.955 in.)
  • Free Length (L0) 254.0 mm +/- 7.62
    (Equiv. 10 in.)
  • Wire Diameter (d) 2.03 mm +/- 0.02
    (Equiv. 0.08 in.)
  • Approx. ID 20.2 mm
  • End Type Open
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • S-43
  • S43
