CCI-02300-S15 - Datasheet
MBA
Category Information

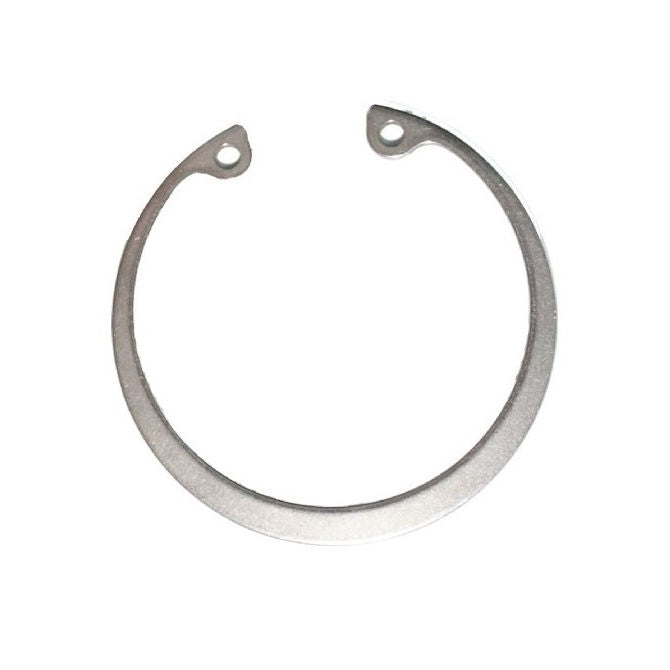

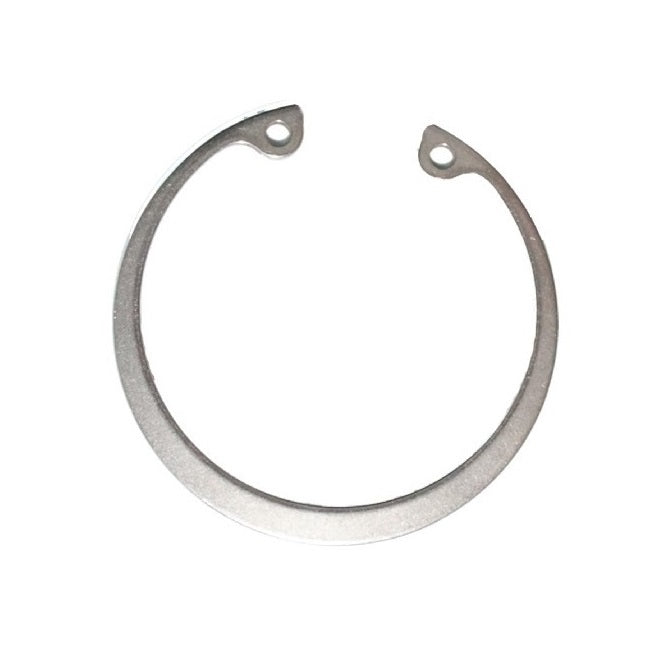

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
23.00
mm
(Equiv. 0.906 in.) - Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.) - Groove Dia. (Dg)
24.10
mm
+ 0.00 / - 0.06
(Equiv. 0.949 in.) - Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21
- Groove Width (W) 1.30 mm + 0.08 / - 0.00
- Clearance in Bore (C) 14.20 mm
- Clearance in Groove (C1) 15.70 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.70
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-023-SS
- 98394A441
- Bossard BN-822-023-SS
- Waldes D1300-023-SS
- NoCor DHO-023-SS
- Rotor Clip DHO-023-SS
- Seeger J-023-SS
- Seeger J23X1.2-411
- D1300-0230KSF
- D13000230KSF
- D1300023SS
- J23X12411
- J023SS
- DHO023SS
- 472023SS
- BN822023SS
