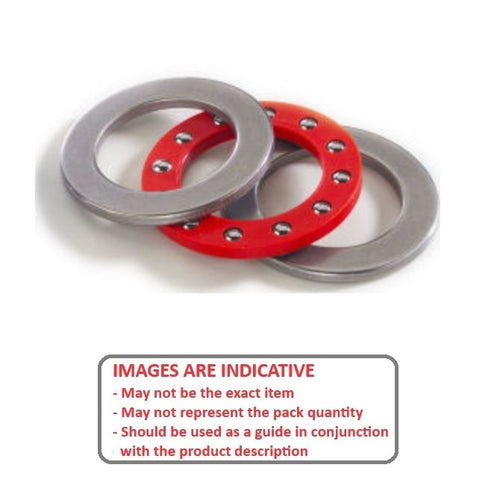

Stainless Steel Flat Thrust Ball Bearings. 3 Piece Thrust Bearings Open Type with Flat Washers

• Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
• Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
• An expanded range may be available on special order. Please enquire.
• These bearings are designed so that when one ring turns, the other remains stationary.
• Some have a larger bore on one side allowing a shaft with no steps to pass through. Others will require a stepped shaft as they have the same bore on both races.
• Some have a reduced size OD on one race allowing it to sit into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.

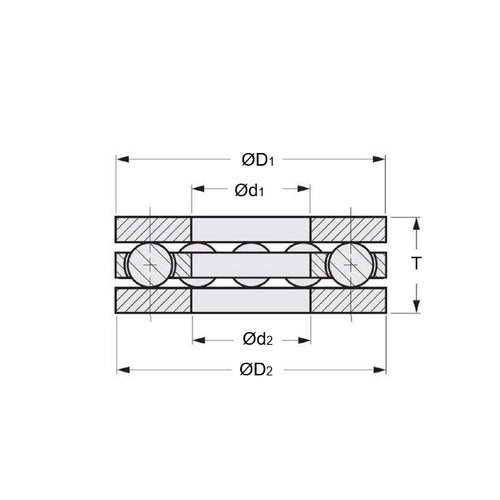

• Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
