MLM-120M-051-CNP - Datasheet
MBA
Category Information

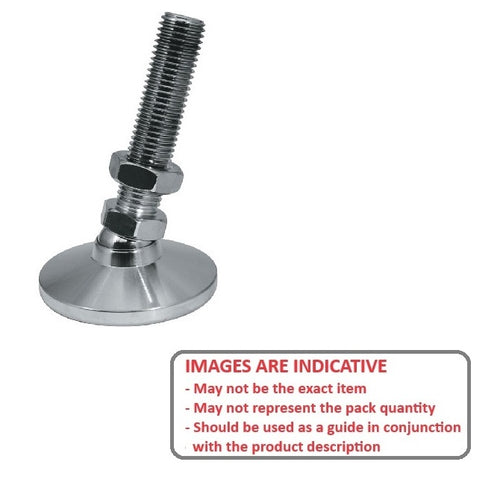

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
48.0
mm
(Equiv. 1.89 in.) - Foot Height (C)
29.0
mm
(Equiv. 1.142 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 6.00 mm
- Overall Height 80.0 mm
- Load Rating 2270 Kg
- Finish Nickel Plated
- Hex Flats (B) 19.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM2270M12NP
- HVTM20N
- HVTM-20N
