MLM-120M-051-CGC - Datasheet
MBA
Category Information

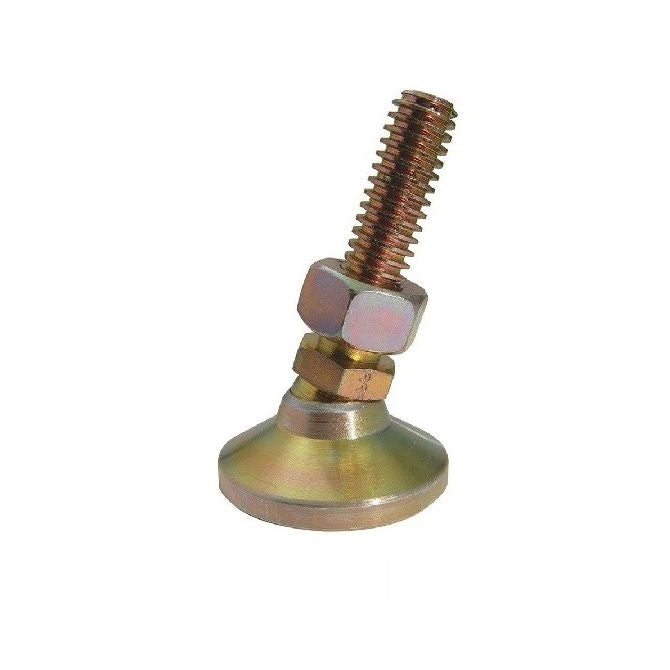

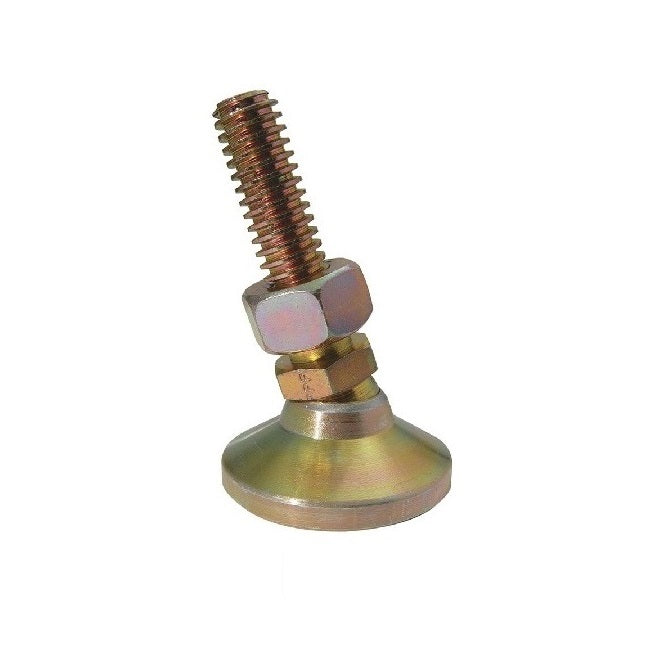

Mounts - Levelling Studded - Standard - Gold ChromateGold Chromate Standard Levelling Studded Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
- Load is distributed over 120o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
- Zinc plated steel with case hardened ball.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
48.0
mm
(Equiv. 1.89 in.) - Foot Height (C)
29.0
mm
(Equiv. 1.142 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 6.00 mm
- Overall Height 80.0 mm
- Load Rating 2270 Kg
- Finish Gold Chromate
- Hex Flats (B) 19.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM2270M12G
- HVTM-20
- HVTM20
