MLM-127C-051-CNP - Datasheet
MBA
Category Information

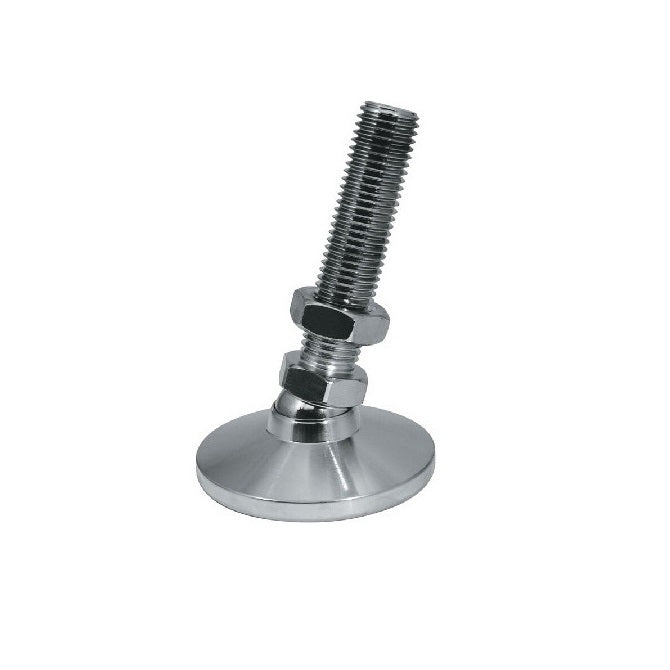

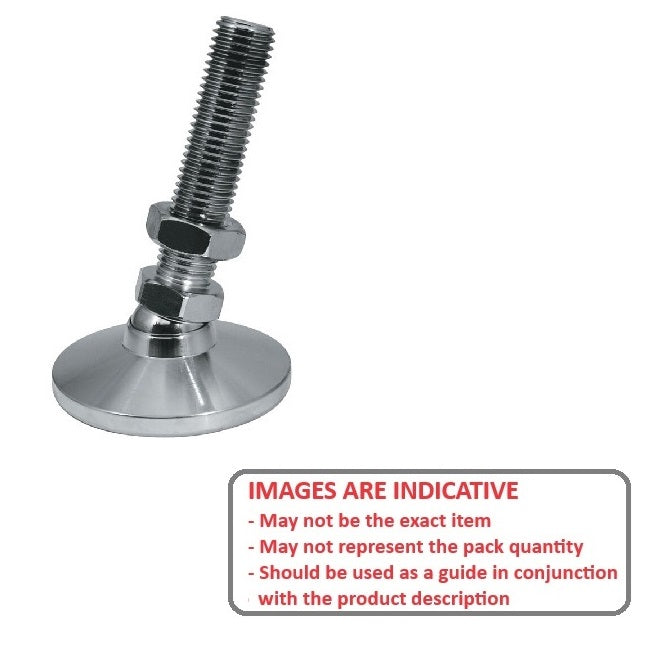

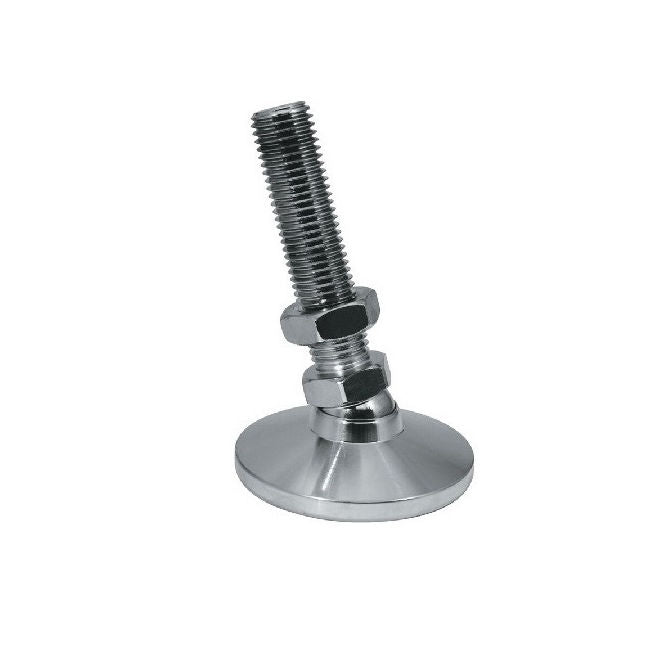

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.

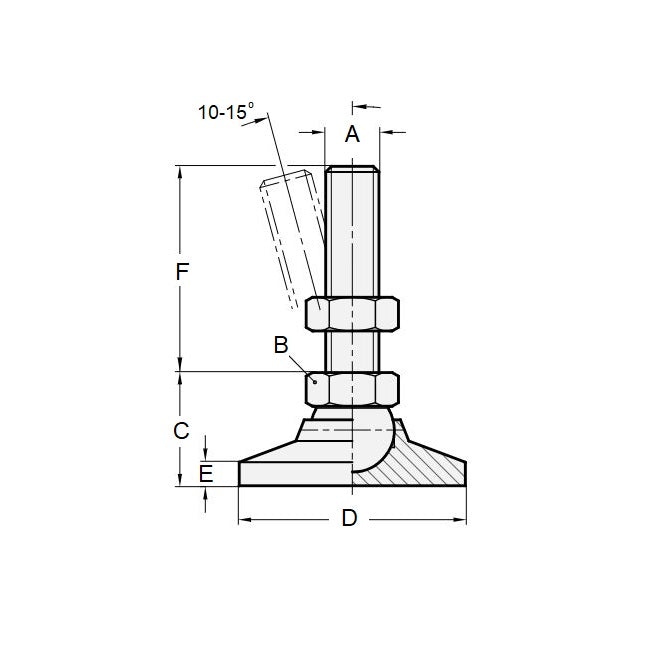

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 6.35 mm
- Overall Height 79.4 mm
- Load Rating 2270 Kg
- Finish Nickel Plated
- Hex Flats (B) 19.05 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM2270127CNP
- HVTL-2N
- HVTL2N
