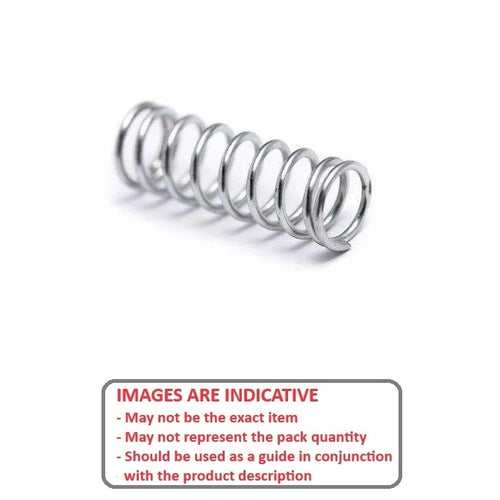

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
22.23
mm
+/- 0.51
(Equiv. 0.875 in.) - Free Length (L0)
50.8
mm
+/- 1.27
(Equiv. 2 in.) - Wire Diameter (d)
3.05
mm
+/- 0.023
(Equiv. 0.12 in.) - Load at L1 334.51 N
- Solid Height (Sh) 29.845 mm
- Approx. ID 16.1 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Century C-764
- C764
