REM-220-R-CB-F - Datasheet
MBA
Category Information

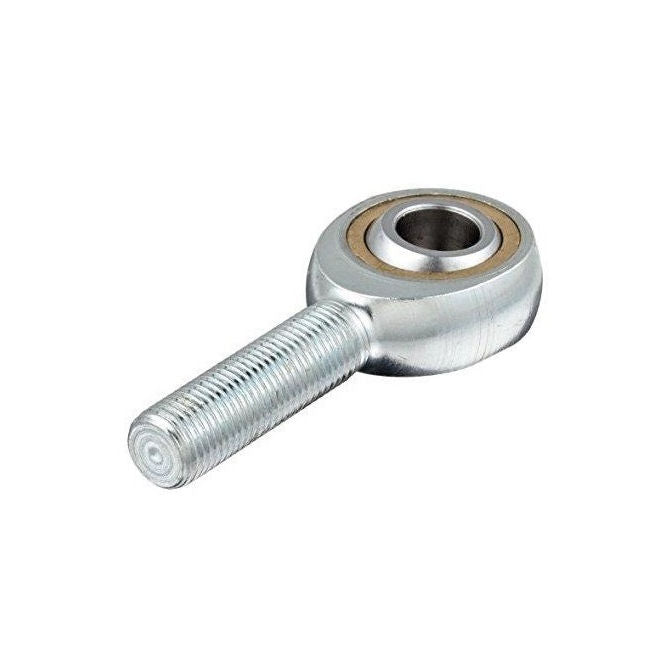

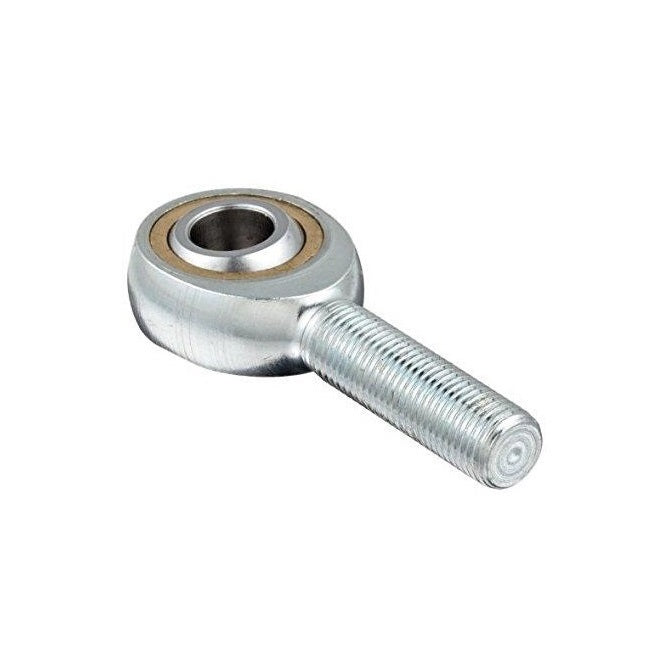

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1) : 22.00 mm
- Overall Length (L) 109.00 mm
- Thread Size M22x1.5 Right
- Min. Thread Length (l2) 51.00 mm
- Head Width (W) 20.00 mm
- Eye Width (W1) 28.00 mm
- Head Diameter (D) 50.00 mm
- Centre Height (l1) 84.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI® JAM22
- KWK KM22
- IKO POS22
- Nachi® POS-22
- NTN® SMI-22
- SMI22
