G011B-021-M05-030-030-AB-G - Datasheet
MBA
Category Information

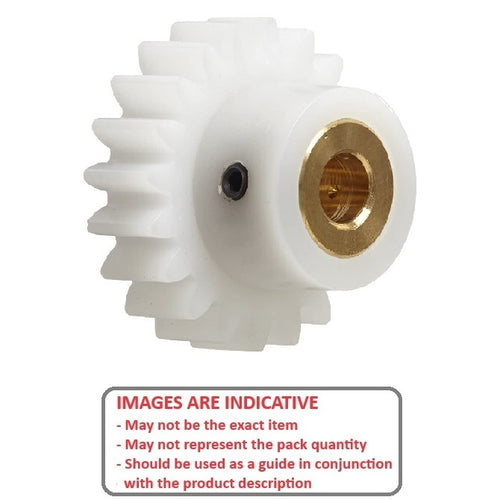

Gears - Spur - Hubbed - Module 0.5 - Plastic - With InsertWith Insert Plastic Module 0.5 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.5. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.5mm per tooth
- Module 0.5. Approximately 1.57mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 21
- Pitch Circle Diameter (PD)
10.50
mm
(Equiv. 0.413 in.) - Bore (d)
3.000
mm
(Equiv. 0.118 in.) - Outside Diameter (OD) 11.500 mm
- Face Width (FW) 3.000 mm
- Type Hubbed
- Hub Diameter (D1) 8.00 mm
- Hub Projection (HL) 7.00 mm
- Locking Method Set Screw
- Quality Commercial - Molded
- Material Acetal - Brass Insert
Product Compliance and Data
Additional Resources
Cross References
- G011B21M05030030ABG
