CSC-218-046-16-M - Datasheet
MBA
Category Information

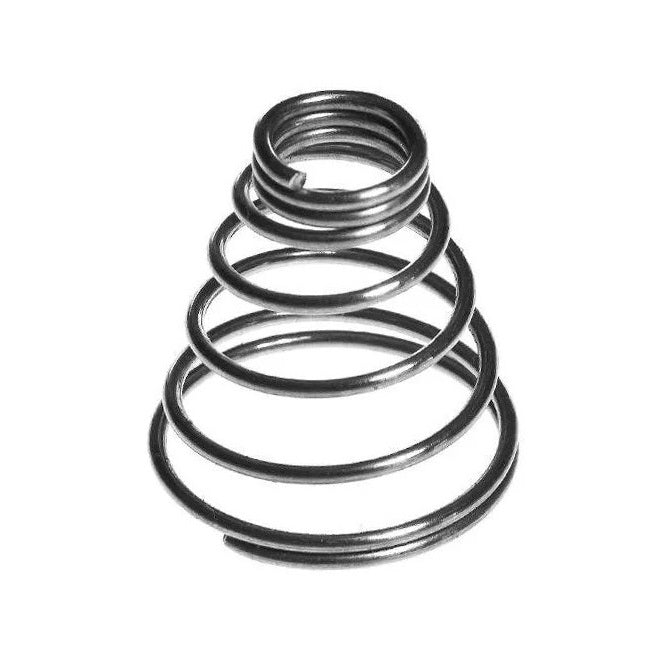

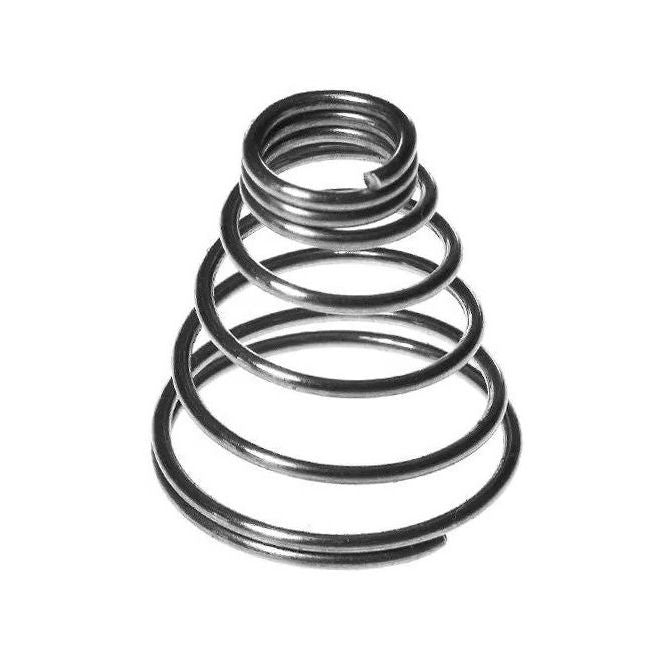

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data
- Large End OD
:
21.80
mm
(Equiv. 0.858 in.) - Free Length
46.1
mm
(Equiv. 1.815 in.) - Small End OD
13.9
mm
(Equiv. 0.547 in.) - Inside Diameter Clearance 10.7 mm
- Wire Thickness 1.57 mm
- Rate 0.2 kg/mm
- Inside Diameter 10.7 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX38
- CX-38
