GM-044-D12-127-C - Datasheet
MBA
Category Information

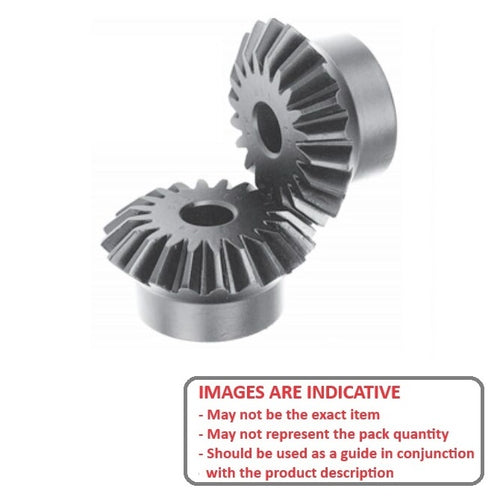

Gears - Mitre - 12DP Steel12DP Steel Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Carbon steel
- An expanded range may be available on special order. Please enquire.
- Mitre gears are used with a matching gear of the same pitch and number of teeth.
- This provides a 1 to 1 ratio on a 90 Degree angle.
- See Gears - Bevel for other ratios.
Product Data
- Number of Teeth : 21

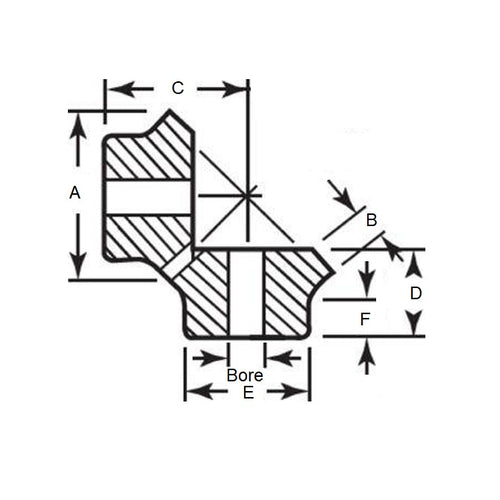

- Pitch Diameter (pd)
44.450
mm
(Equiv. 1.75 in.) - Bore (d)
12.700
mm
(Equiv. 0.5 in.) - Overall Length (L) 30.277 mm
- Hub Diameter (hd) 35.052 mm
- Each
- Hub Projection (F) 17.526 mm
- Mounting Distance (C) 44.450 mm
- Face Width (B) 10.160 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L119Y
- GE-119
- GE119
