RK75B2-0308 - Datasheet
MBA
Category Information

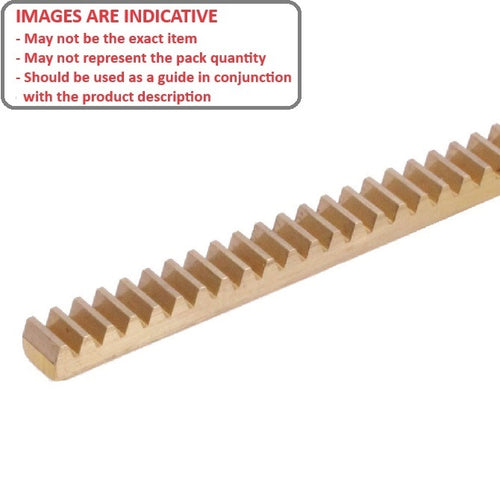

Gears - Rack - Metric - Module 0.75 BrassModule 0.75 Brass Metric Rack Gears. 20 Degree Pressure Angle
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
200
mm
(Equiv. 7.874 in.) - Face Width (fw)
3.000
mm
(Equiv. 0.118 in.) - Height (h)
8.000
mm
(Equiv. 0.315 in.) - Pitch Type Module 0.75
- Pressure Angle 20 °
- Precision ISO CuZn39Pb3
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi RK75B2-0308
- RK75B20308
