REM-200-L-CB-F - Datasheet
MBA
Category Information

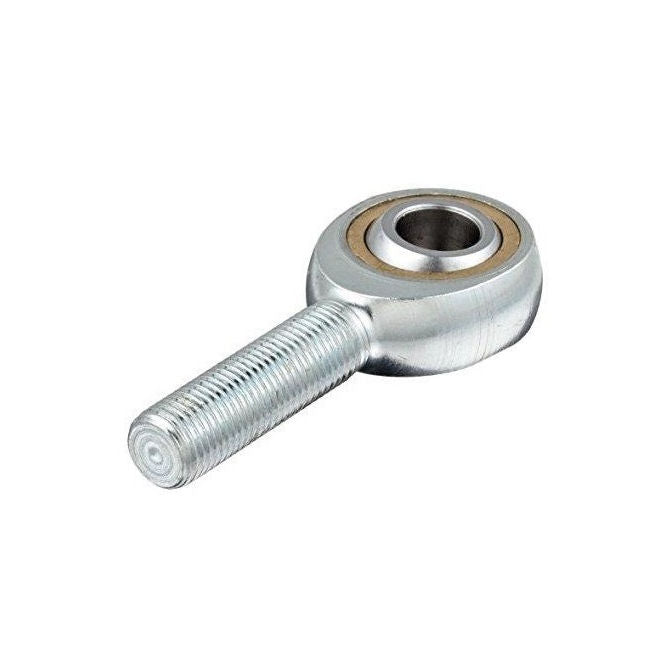

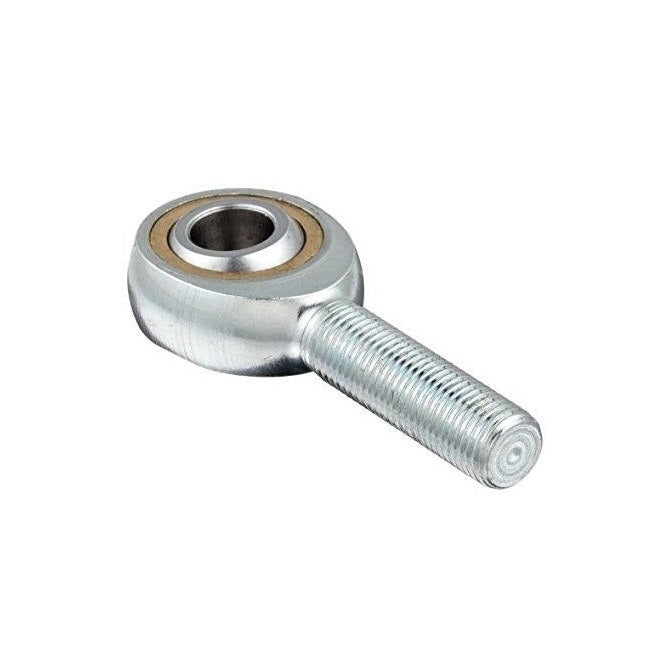

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
20
mm
(Equiv. 0.787 in.) - Overall Length (L)
101.00
mm
(Equiv. 3.976 in.) - Thread Size M20x1.5 Left
- Min. Thread Length (l2) 47.00 mm
- Head Width (W) 18.00 mm
- Eye Width (W1) 25.00 mm
- Head Diameter (D) 46.00 mm
- Centre Height (l1) 78.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI JAM20L
- KWK KM20L
- IKO POS20L
- Nachi POS-20L
- NTN SMI-20L
- SMI20L
