Miniature Bearings Australia
TP-028-0254-S3 - Datasheet
MBA
Category Information

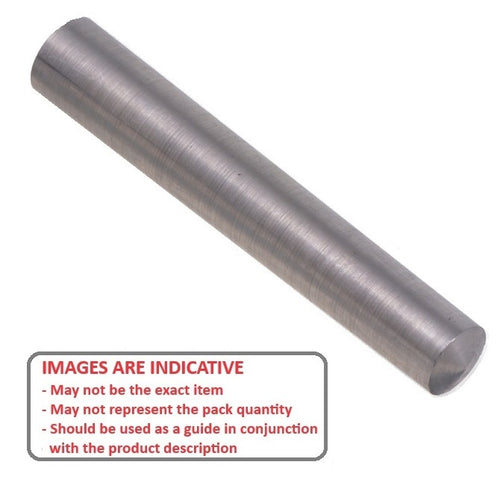

Pins - Taper Imperial - Miniature - Stainless SteelStainless Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Large End Diameter (D2) : 2.78 mm
- Length (L) 25.40 mm
- Nom. Small End Diameter (D) 2.25 mm
- Pin Number 4/0
- Material Stainless Steel Grade 303/304 HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90681A073
- Huyett® TPS-40-1000
- NoCor® TPS-40-1000
- TPS401000
- S7250Y4032
- S7250Y-4032
