Category Information

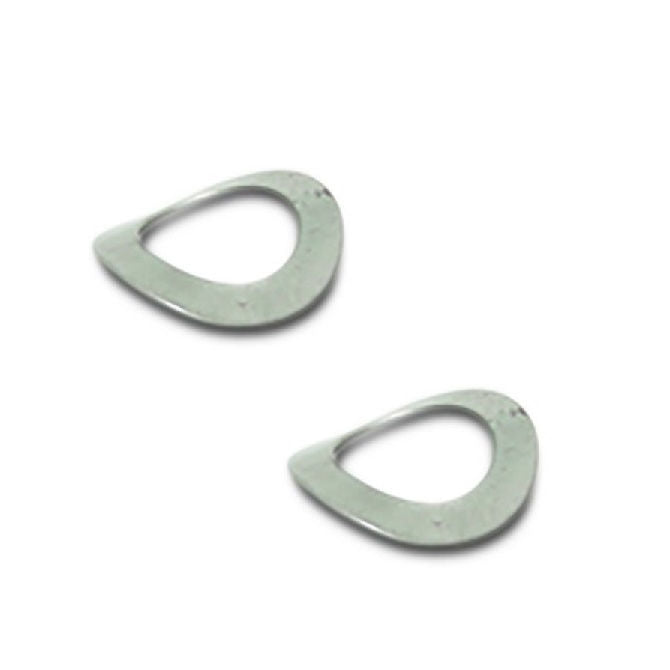

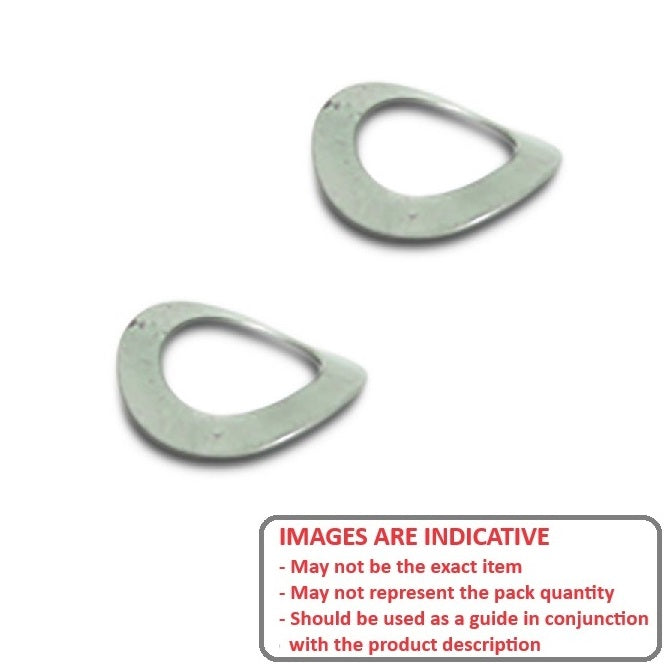

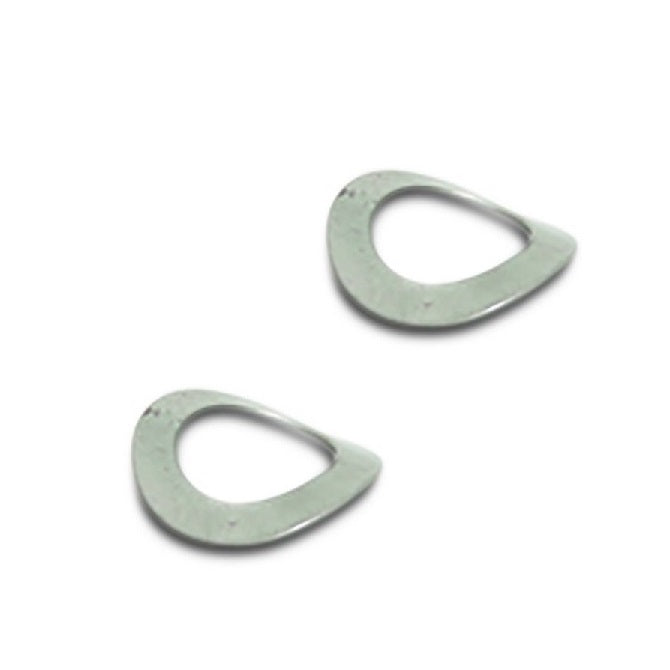

Washers - Spring - Curved - Carbon SteelCarbon Steel Curved Spring Washers. Carbon steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

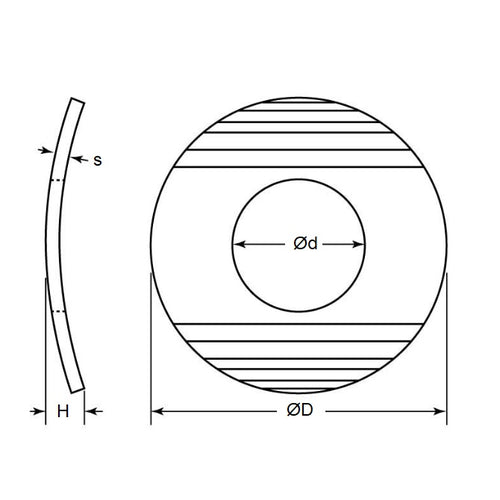

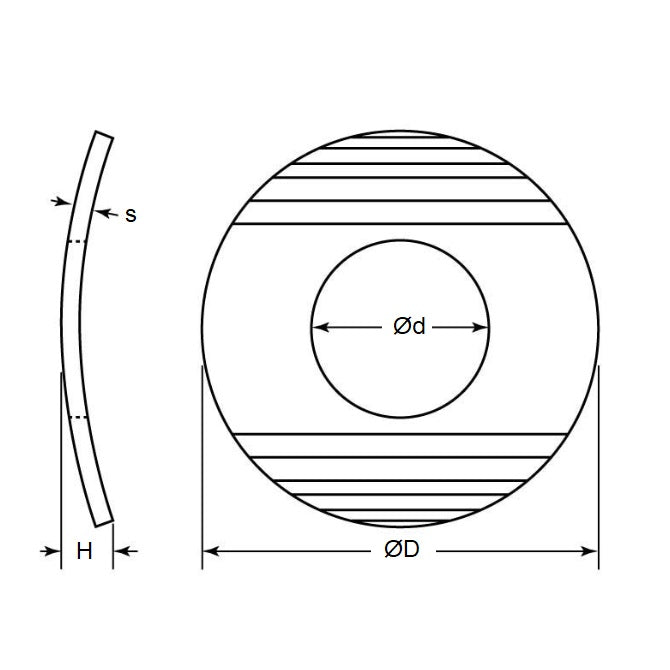

- Nominal Inside Diameter (B)
:
2.50
mm
+ 0.250 / - 0
(Equiv. 0.098 in.) - Nominal Outside Diameter (A)
5.50
mm
+/- 0.38
(Equiv. 0.217 in.) - Nom. Height (C)
0.55
mm
(Equiv. 0.022 in.) - Thickness (D) 0.30 mm
- Info Zinc Plated
- Type Curved DIN 137 Type A
- Nominal Screw Size M2.5, 4-40 / 4-48, 3/32
- Actual ID (Ref) 2.8 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- MD0137MQA055
