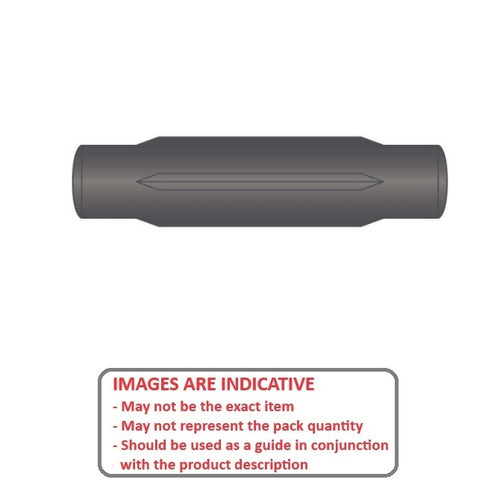

GPE-0250-2000-BO - Datasheet
MBA
Category Information
Pins - GrooveGroove Pins. Non threaded press fit fastener that doesn't require a reamed hole as do dowel pins.Commonly used in place of taper pins.
- An expanded range may be available on special order. Please enquire.
- An economic method of fastening without the need for precision drilled and reamed holes.
- Recommended hole tolerance is H11.
- Total length may be slightly longer than the nominal length.
- Expanded portion of the pin is compressed into the hole a few thousands of an inch wider than the nominal pin diameter. Radial forces lock the pin securely into the drilled hole.
Product Data

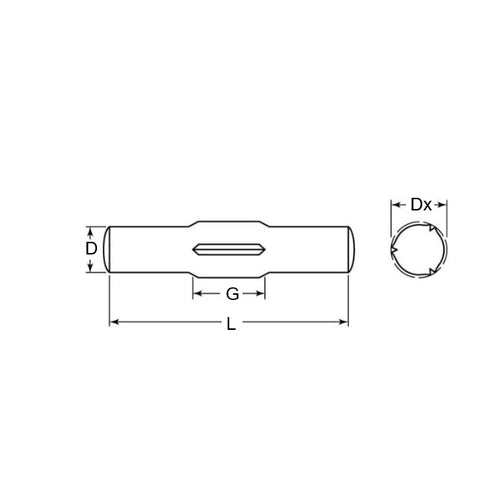

- Nominal Diameter (D)
:
2.500
mm
+ 0.00 / - 0.025
(Equiv. 0.098 in.) - Length (L)
20.000
mm
(Equiv. 0.787 in.) - Expanded. Dia [min / max] (Dx)
2.65
mm
(Equiv. 0.104 in.) - Type Type E
- Material Black Oxide Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi SPRINGPINFE-ST-D2.5-20
- SPRINGPINFESTD2520
