CS-0239-9144-03-M - Datasheet

MBA

Category Information

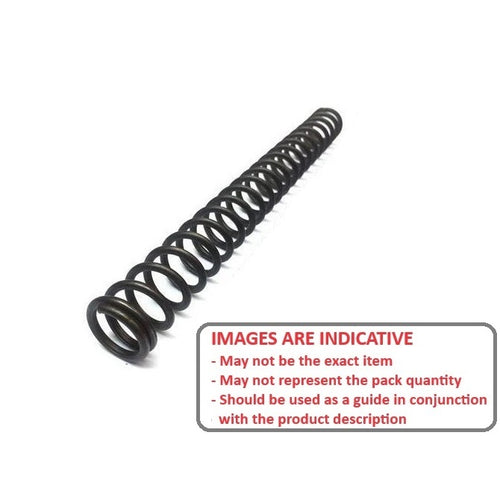

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 2.39 mm
    (Equiv. 0.094 in.)
  • Free Length (L0) 914 mm
    (Equiv. 35.984 in.)
  • Wire Diameter (d) 0.33 mm
    (Equiv. 0.013 in.)
  • Rate (P/f) 0.4 N/mm
  • Approx. ID 1.7 mm
  • End Type Closed
  • Material Music Wire
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9662K11
  • S-201
  • S201
