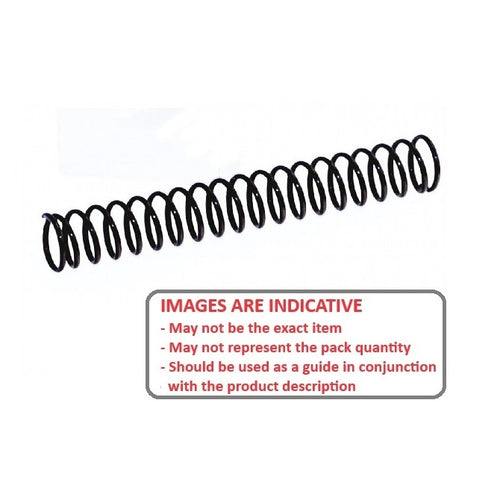

CS-0238-2540-04-M - Datasheet
MBA
Category Information
Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
2.38
mm
+/- 0.076
(Equiv. 0.094 in.) - Free Length (L0)
254.0
mm
+/- 7.62
(Equiv. 10 in.) - Wire Diameter (d)
0.36
mm
+/- 0.015
(Equiv. 0.014 in.) - Approx. ID 1.7 mm
- End Type Open
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- S2
- S-2
