DVAB2-ST-064-ADJ-303 - Datasheet
MBA
Category Information

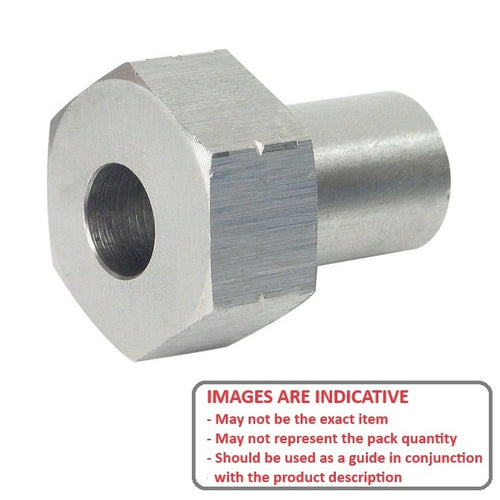

Dual Vee - Adaptor BushingsAdaptor Bushings Dual Vee. Vee grooved track roller bushings.

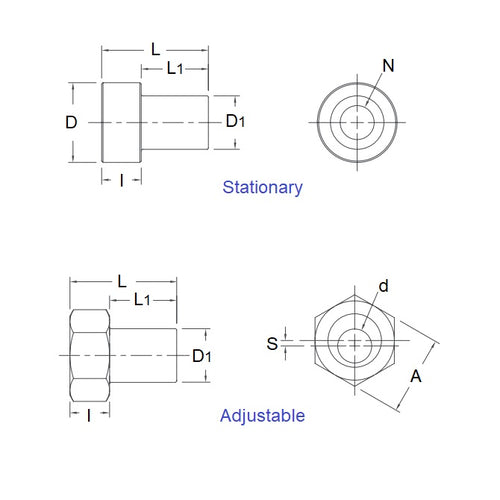

- Stationary bushings have a concentric hole
- Adjustable bushings have an eccentric hole allowing positioning of the guide wheel as the bush is turned
Product Data
- Bushing Size : 2
- Overall Length (L)
18.000
mm
+ 0.000 / - 0.070
(Equiv. 0.709 in.) - Head Width (l)
6.650
mm
+/ - 0.03
(Equiv. 0.262 in.) - Shank Diameter (D1) 9.520 mm + 0.000 / - 0.030
- Diameter / Hex (D or A) 14.000 mm
- Inside Diameter (N or d) 6.350 mm + 0.050 / - 0.000
- Offset Value (s) 0.610 mm
- Bush Type Adjustable
- Head Configuration Hexagon
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
