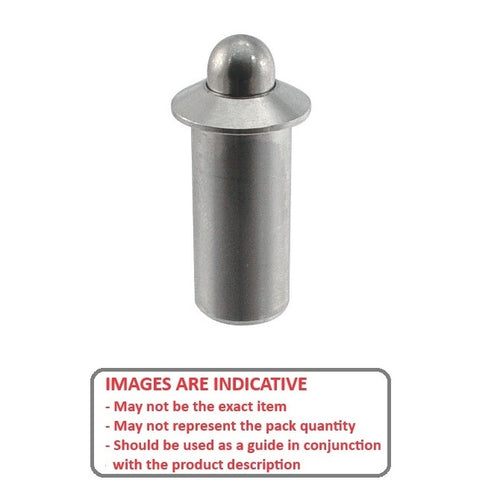

PLSP-020-080-S3-001 - Datasheet

MBA

Product Data

• Body Diameter (A) : 2.00 mm _{+ 0.10 / - 0.00}
  (Equiv. 0.079 in.)
• Body Length (B) 8.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.315 in.)
• Initial Pressure (F1) 0.50 N _{+ 0.00 / - 0.12}
• Final Pressure (F2) 1.00 N
• Tip Diameter (D) 1.00 mm
• Tip Length (C) 1.50 mm
• Spring Material 304 Stainless
• Body Material 303 Stainless
• Tip Shape Flat head
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-MPFS2-1.5
• Misumi C-MPJS2-1.5
• CMPJS215
• CMPFS215
