CSC-191-027-05-M - Datasheet
MBA
Category Information

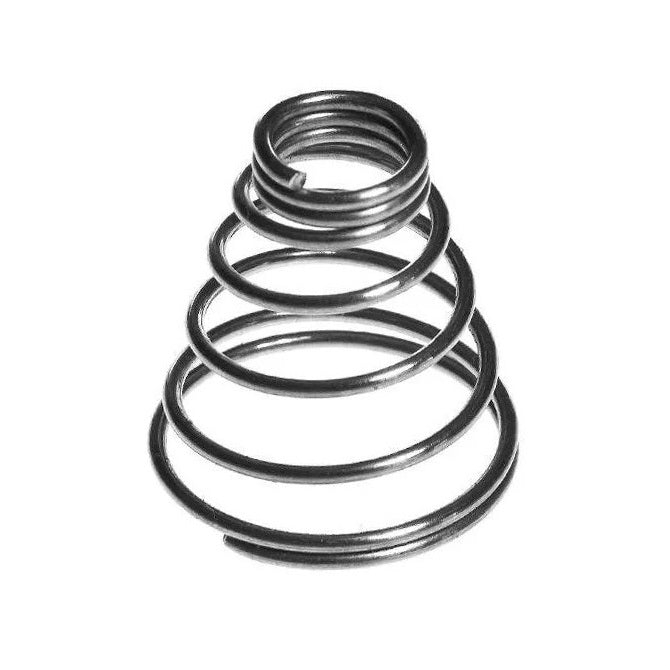

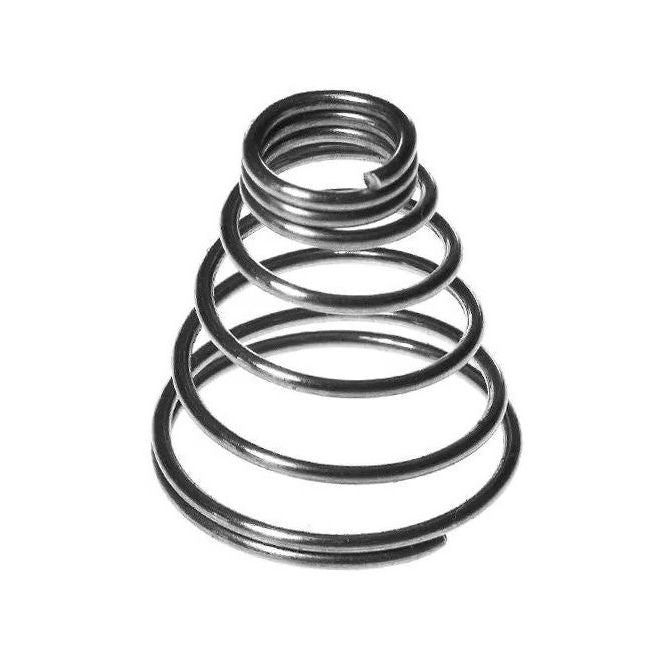

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data
- Large End OD
:
19.10
mm
(Equiv. 0.752 in.) - Free Length
27.0
mm
(Equiv. 1.063 in.) - Small End OD
12.7
mm
(Equiv. 0.5 in.) - Inside Diameter Clearance 11.7 mm
- Wire Thickness 0.48 mm
- Rate 0.0 kg/mm
- Inside Diameter 11.7 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX36
- CX-36
