W0191-ALN-C-SET - Datasheet
MBA
Category Information

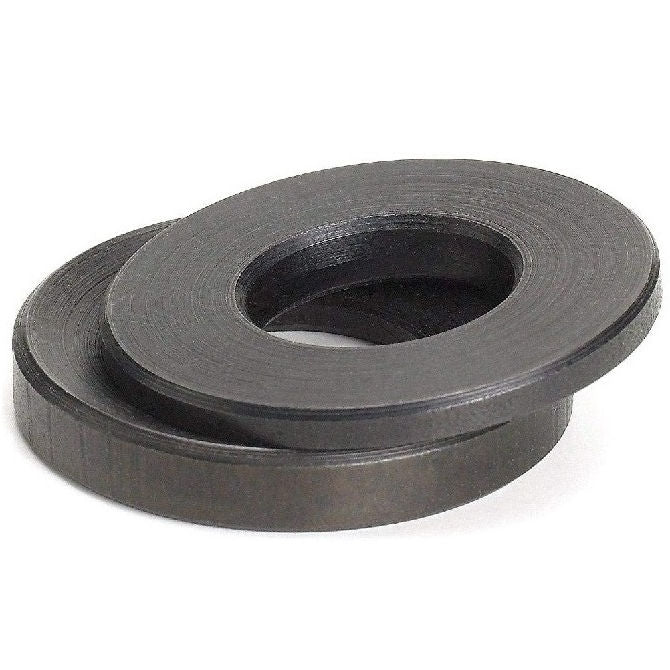

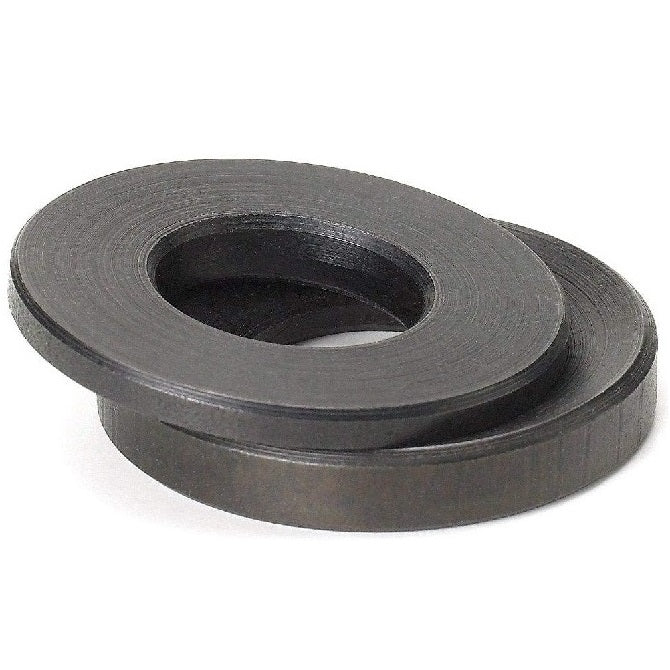

Washers - Self Aligning - Sets - Hardened SteelHardened Steel Sets Self Aligning Washers. Complete set, containing both aligning and seating washers.
- Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.
- Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.
- Hardened steel 9 S Mn Pb 28 K DIN 6319.
- Max Shaft Size Shown will allow 3 Deg of misalignment.
- DIN 6319-NI washers are used for clamping mechanical parts with non-parallel surfaces.

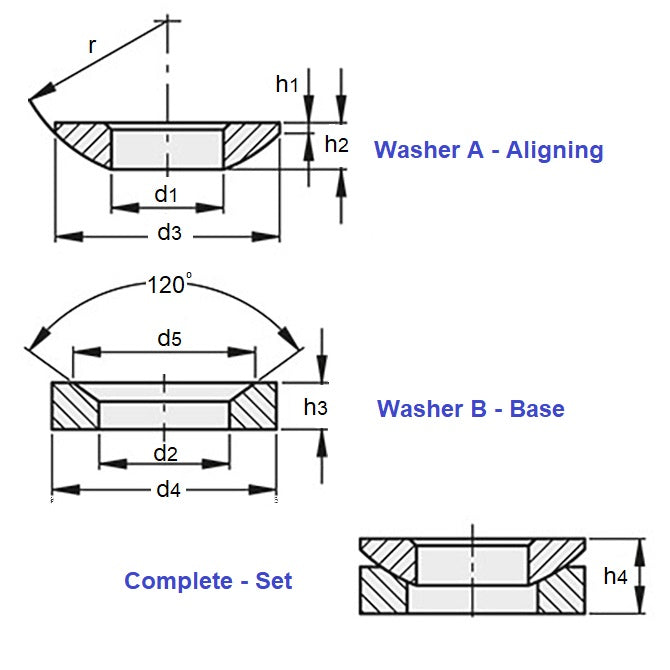

Product Data
- Suitable Shaft or Bolt Size
:
19.05
mm
(Equiv. 0.75 in.) - Bore Size (A)
19.844
mm
+/- 0.38
(Equiv. 0.781 in.) - OD (B)
41.28
mm
+ /- 0.38
(Equiv. 1.625 in.) - Overall Height (C) 9.525 mm +/- 0.38
- Material Carbon Steel Hardened
Product Compliance and Data
Additional Resources
Cross References
- SPW-6
- SPW6
