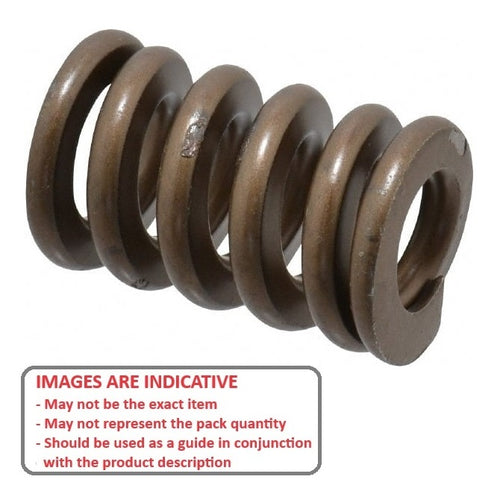

Standard Heavy Duty Imperial Die Springs. Colour coded gold. Vapor degassed high tensile strength chromium alloy steel.

• Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
• Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
• Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
• Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.
• Maximum deflection is 30 percent of the length
• Efficient operating range is 15 to 25 percent of the length
• Spring Ends: Squared and ground.
