BLP-191-1270-TI-S17 - Datasheet
MBA
Category Information

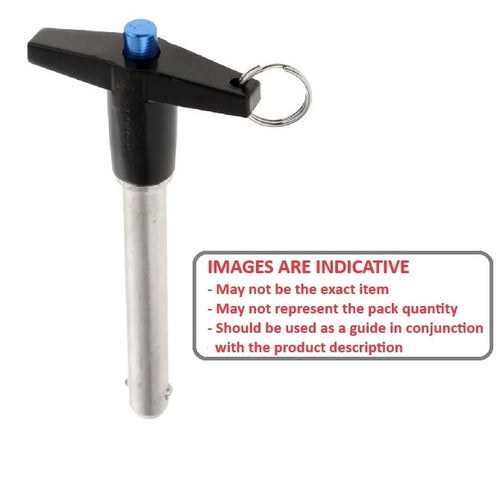

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless SteelStainless Steel Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. Body and spindle 17-4 PH stainless steel. Ring and spring 17-7 MO stainless steel. Handle and collar are 300 grade stainless. Tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

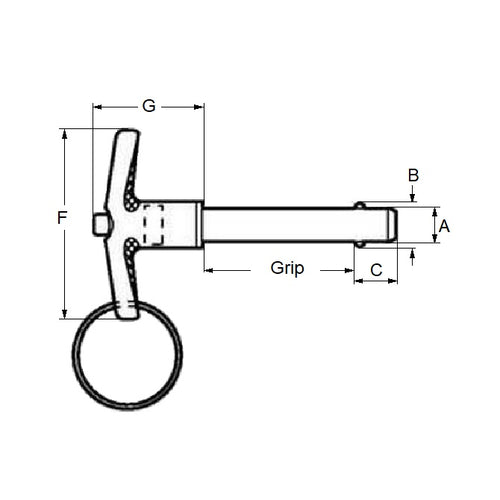

- Nominal Diameter
:
19.05
mm
(Equiv. 0.75 in.) - Grip Length (B)
127.00
mm
(Equiv. 5 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 17.01 mm
- Open Ball Distance (B) 22.52 mm
- Handle Width (F) 78.74 mm
- Handle Length (G) 43.68 mm
- Pull Out Strength 1316.00 Kg
- Calc. Double Shear Strength 36690 Kg
- Max. Diameter 19.01 mm
- Min. Diameter 18.97 mm
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- BLTS-300A
- BLTS300
- BLTS300A
