BLP-191-1016-BT-S17 - Datasheet
MBA
Category Information

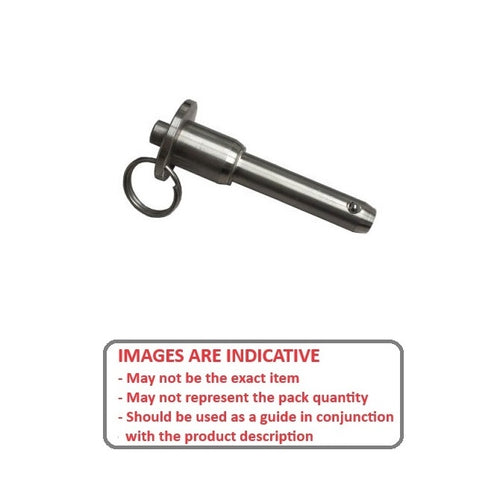

Pins - Ball Lock - Button Handle - Industrial Stainless SteelIndustrial Stainless Steel Button Handle Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls

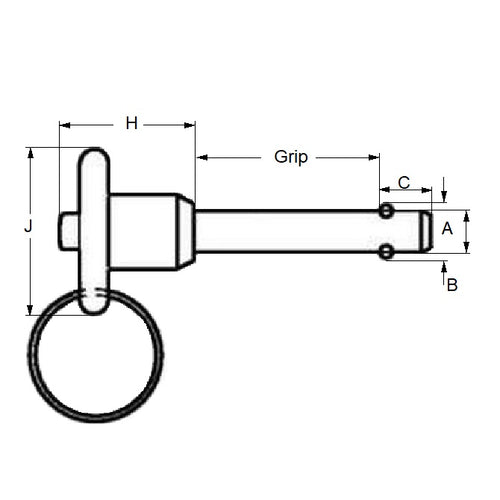

Product Data
- Nominal Diameter
:
19.05
mm
(Equiv. 0.75 in.) - Grip Length (B)
101.60
mm
(Equiv. 4 in.) - Pin Material Grade 17-4 PH Stainless / Aluminium Handle
- Locking Ball to End (C) 17.01 mm
- Open Ball Distance (B) 22.52 mm
- Ring Diameter (F) 41.66 mm
- Handle Length (R) 41.28 mm
- Pull Out Strength 1335.00 Kg
- Calc. Double Shear Strength 50905 Kg
- Max. Diameter 19.01 mm
- Min. Diameter 18.97 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- BLBS-290
- BLBS290
