CNG-01905-C - Datasheet
MBA
Category Information

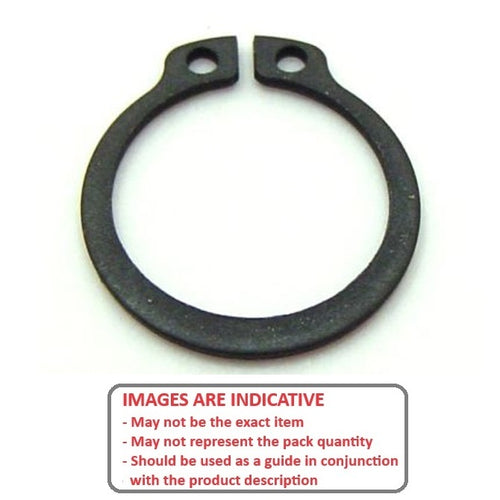

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

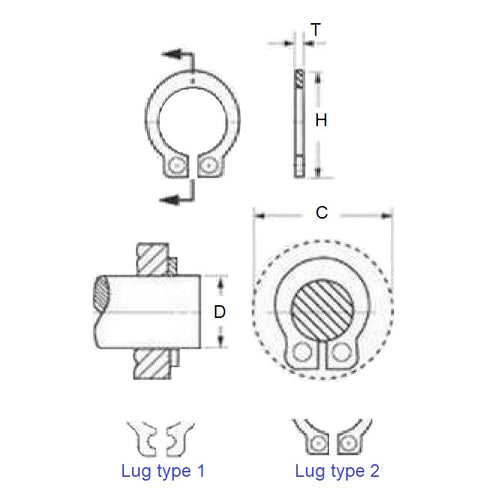

Product Data
- Shaft Diameter (Ds)
:
19.05
mm
+/- 0.10
(Equiv. 0.75 in.) - Clip Thickness (T)
1.57
mm
(Equiv. 0.062 in.) - Approx. Loose Circlip ID (A) 17.90 mm
- Assemb. Clearance on Shaft (C) 33.27
- Allowable Load 365 N
- Lug Type 2 (Closed) mm
- Tool PRS-E070-X
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHF-075
- SHF075
- N1440-0075
- N14400075
- N14400075APP
- N1440-0075APP
