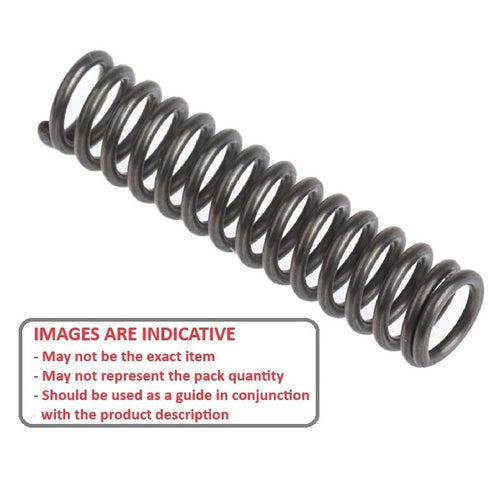

CS-1829-0508-14-M-C - Datasheet

MBA

Category Information

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 18.29 mm +/- 0.381
    (Equiv. 0.72 in.)
  • Free Length (L0) 50.8 mm +/- 1.27
    (Equiv. 2 in.)
  • Wire Diameter (d) 1.40 mm +/- 0.018
    (Equiv. 0.055 in.)
  • Rate (P/f) 1.5 N/mm
  • Solid Height (Sh) 10.440 mm
  • Approx. ID 15.5 mm
  • End Type Closed
  • Material Carbon Spring Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • ASI C0720-055-2000
  • C07200552000
