Miniature Bearings Australia
TP-183-1143-S4-EE - Datasheet
MBA
Category Information

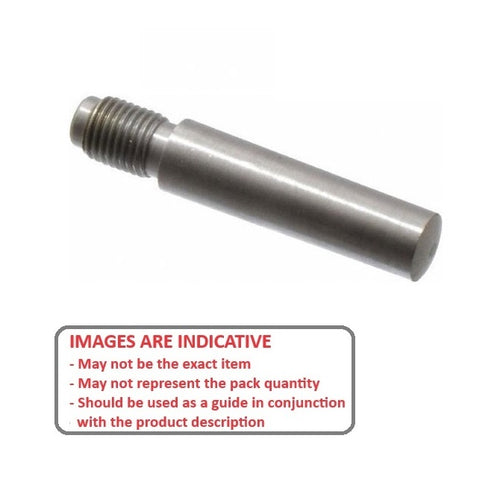

Pins - Taper Imperial - Extractable - External Thread - Stainless SteelStainless Steel External Thread Extractable Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
- Threaded externally for easy extraction.
Product Data

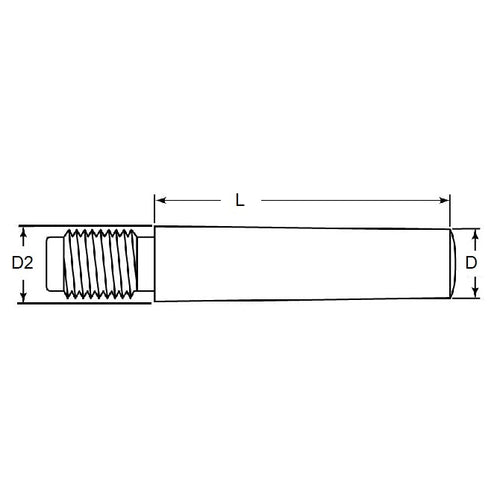

- Nom. Large End Diameter (D2)
:
18.26
mm
(Equiv. 0.719 in.) - Pin Length (L)
114.30
mm
(Equiv. 4.5 in.) - Nom. Small End Diameter (D)
15.88
mm
(Equiv. 0.625 in.) - Pin Number 10
- Thread Size 5/8 UNF
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 92284A618
- NoCor TPTS-10-4500
- TPTS104500
