REM-180-L-CB-F - Datasheet
MBA
Category Information

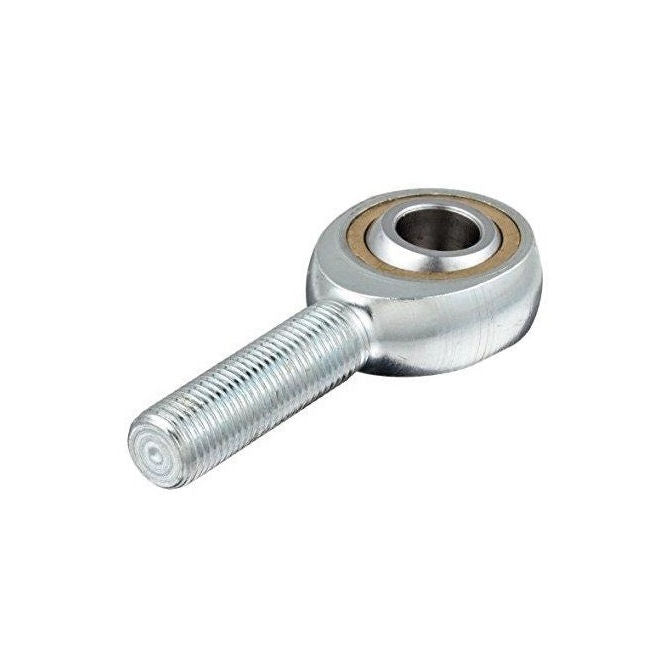

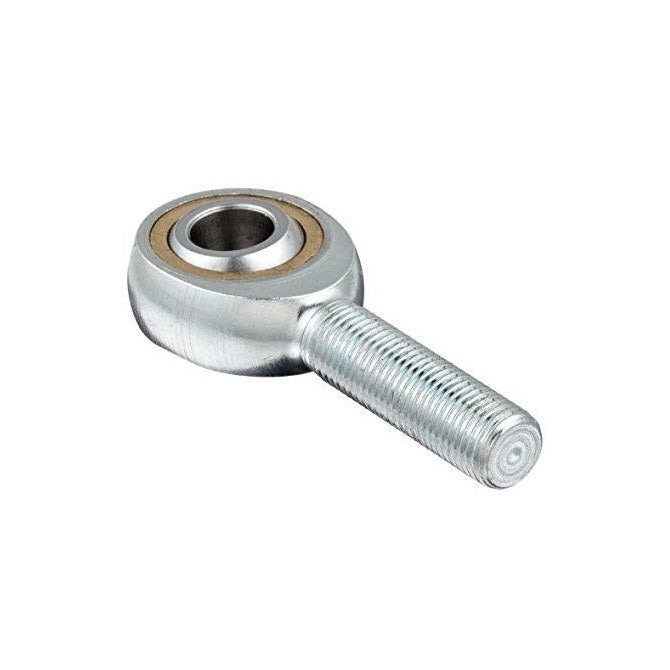

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

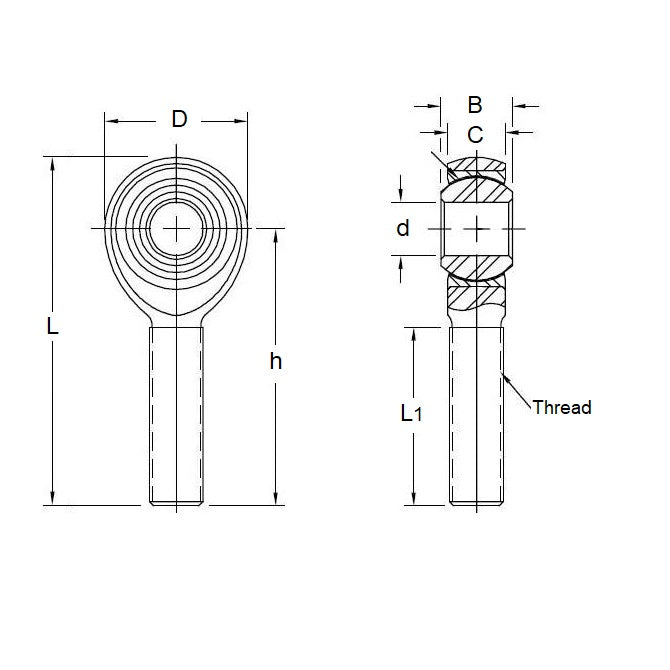

- Eye Size (d1)
:
18
mm
(Equiv. 0.709 in.) - Overall Length (L)
93.00
mm
(Equiv. 3.661 in.) - Thread Size M18x1.5 Left
- Min. Thread Length (l2) 44.00 mm
- Head Width (W) 16.50 mm
- Eye Width (W1) 23.00 mm
- Head Diameter (D) 42.00 mm
- Centre Height (l1) 72.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI JAM18L
- KWK KM18L
- IKO POS18L
- Nachi POS-18L
- NTN SMI-18L
- SMI18L
