MSM-127C-102-S6RP - Datasheet

MBA

Category Information

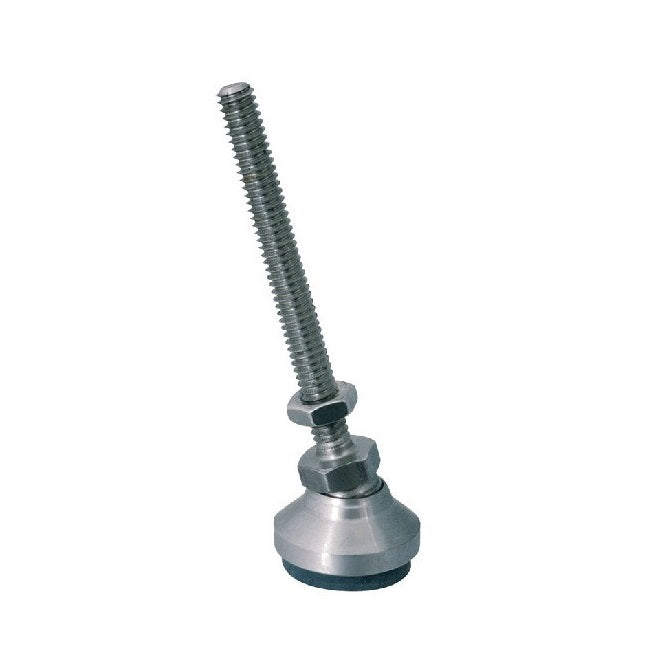

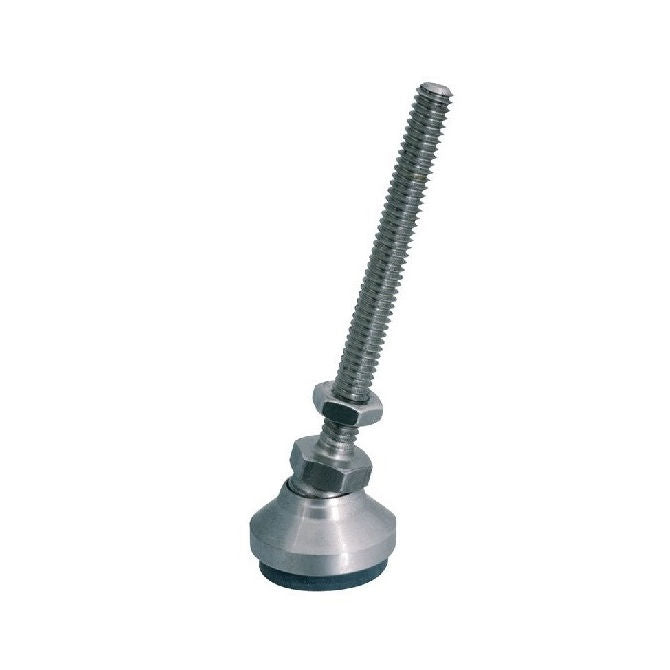

Mounts - Levelling Studded - Swivel - 316 Stainless - Rubber Padded

Rubber Padded 316 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

An expanded range may be available on special order. Please enquire.

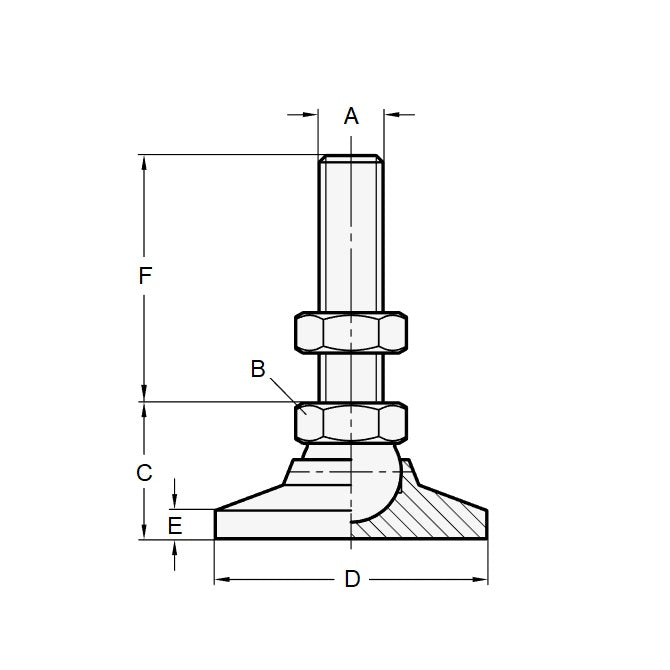

Product Data

Thread Size (A) : 1/2-13 UNC (12.7mm)
Base Diameter (D) 47.6 mm
Foot Height (C) 31.8 mm
Thread Length (F) 101.6 mm
Base Height (E) 9.53 mm
Overall Height 133.4 mm
Load Rating 1700 Kg
Pad Thickness 3.2 mm
Pad Material Elastomer
Hex Flats (B) 19.050 mm
Material Stainless Steel 316 (Similar to A4 or 18-10)

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® TLESS-25
TLESS25
MSM1700127CLS6R
