MLM-100M-051-CNP - Datasheet
MBA
Category Information

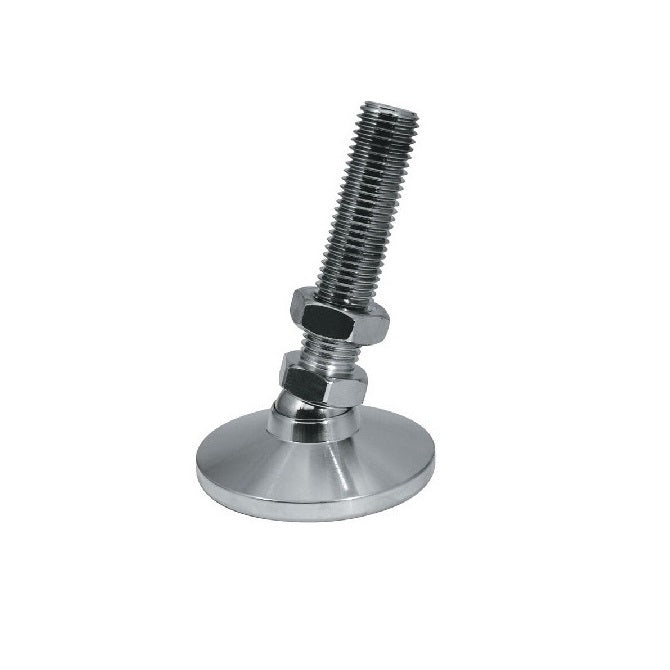

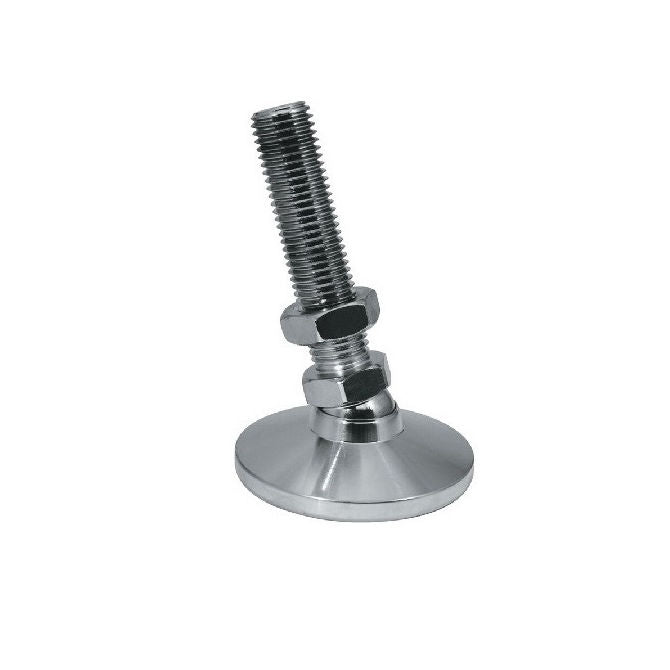

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
32.0
mm
(Equiv. 1.26 in.) - Foot Height (C)
22.0
mm
(Equiv. 0.866 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 5.00 mm
- Overall Height 73.0 mm
- Load Rating 1700 Kg
- Finish Nickel Plated
- Hex Flats (B) 17.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM1700M10NP
- HVTM15N
- HVTM-15N
