MLM-100M-051-CGC - Datasheet
MBA
Category Information

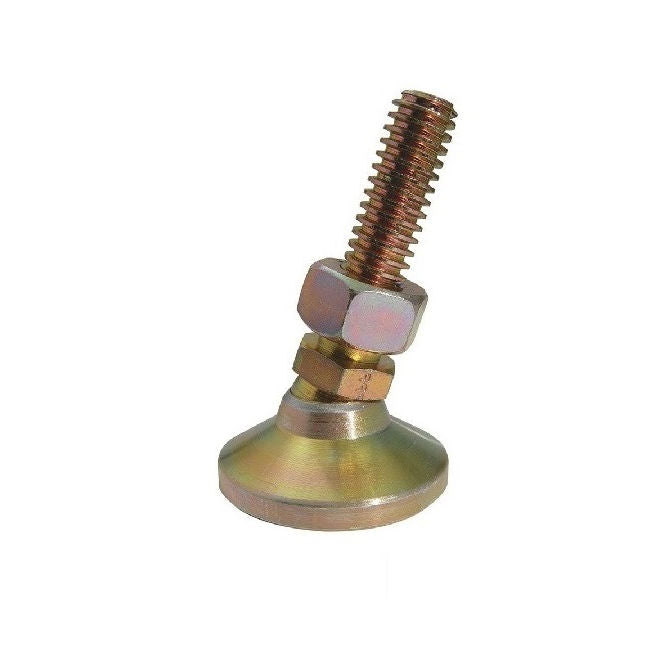

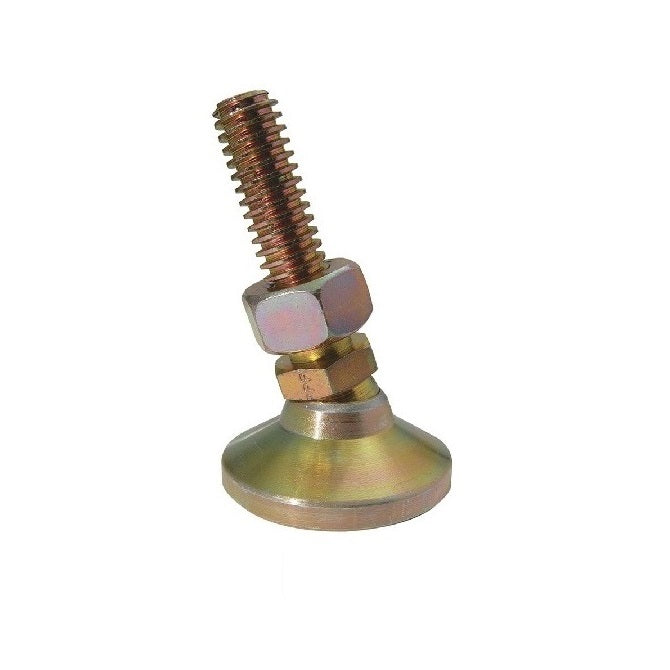

Mounts - Levelling Studded - Standard - Gold ChromateGold Chromate Standard Levelling Studded Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
- Load is distributed over 120o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
- Zinc plated steel with case hardened ball.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
32.0
mm
(Equiv. 1.26 in.) - Foot Height (C)
22.0
mm
(Equiv. 0.866 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 5.00 mm
- Overall Height 73.0 mm
- Load Rating 1700 Kg
- Finish Gold Chromate
- Hex Flats (B) 17.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM1700M10G
- HVTM-15
- HVTM15
