MLM-095C-051-CBC - Datasheet
MBA
Category Information

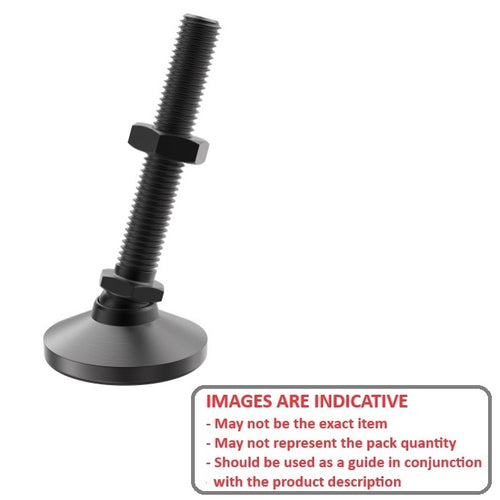

Mounts - Levelling Studded - Standard - Black ChromateBlack Chromate Standard Levelling Studded Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
- Load is distributed over 120o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
- Zinc plated steel with case hardened ball.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Base Diameter (D)
31.8
mm
(Equiv. 1.252 in.) - Foot Height (C)
22.2
mm
(Equiv. 0.874 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 4.75 mm
- Overall Height 73.0 mm
- Load Rating 1700 Kg
- Finish Black Chromate
- Hex Flats (B) 15.875 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- RSL-103
- RSL103
- MLM1700095CB
