PLIT-160-240-200-96-LKP-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless and Plastic - With Locking Slot

With Locking Slot Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M24 Fine (24x2mm)
    • Overall Length (A) 96.0 mm
      (Equiv. 3.78 in.)
    • Initial End Force 2.0 N
    • Final End Force 4.7 N
    • Tip Diameter (C) 16.0 mm
    • Tip Length (D) 16.0 mm
    • Hex Height (F) 18.0 mm
    • Knob Diameter (J) 40.0 mm
    • Hex Size (K) 27.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-563
      • KBP563
      View full details

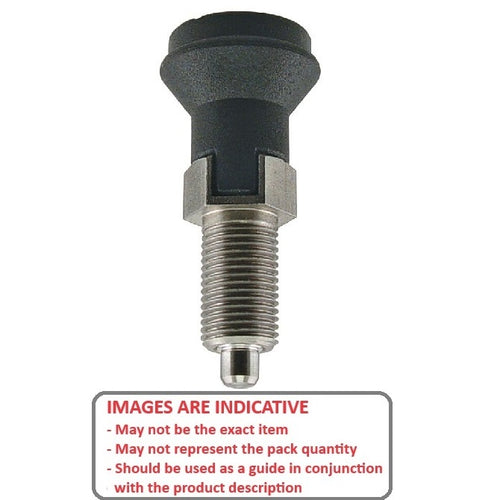

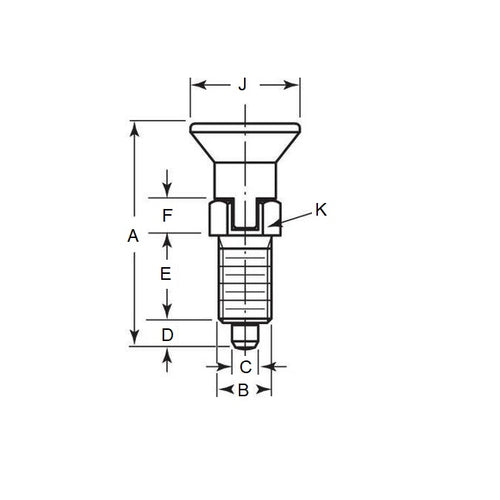

      PLIT-160-240-200-96-LKP-S3DiagramPLIT-160-240-200-96-LKP-S3Image
