PLIT-160-240-200-96-KP-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless and Plastic - Standard

Standard Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M24 Fine (24x2mm)
    • Overall Length (A) 96.0 mm
      (Equiv. 3.78 in.)
    • Initial End Force 2.0 N
    • Final End Force 4.7 N
    • Tip Diameter (C) 16.0 mm
    • Tip Length (D) 16.0 mm
    • Nut Height (F) 18.0 mm
    • Knob Diameter (J) 40.0 mm
    • Hex Size (K) 27.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP523
      • KBP-523
      View full details

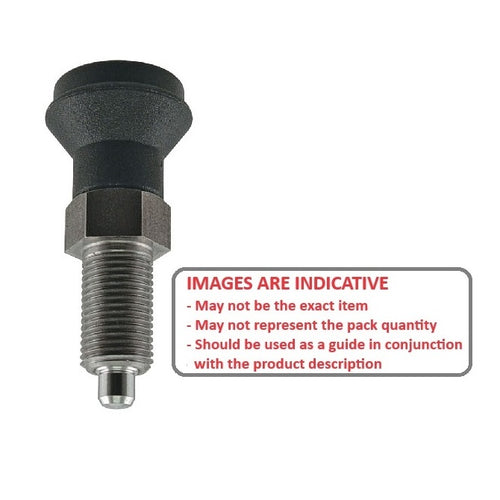

      PLIT-160-240-200-96-KP-S3DiagramPLIT-160-240-200-96-KP-S3Image
