YE-16ARS - Datasheet
MBA
Category Information

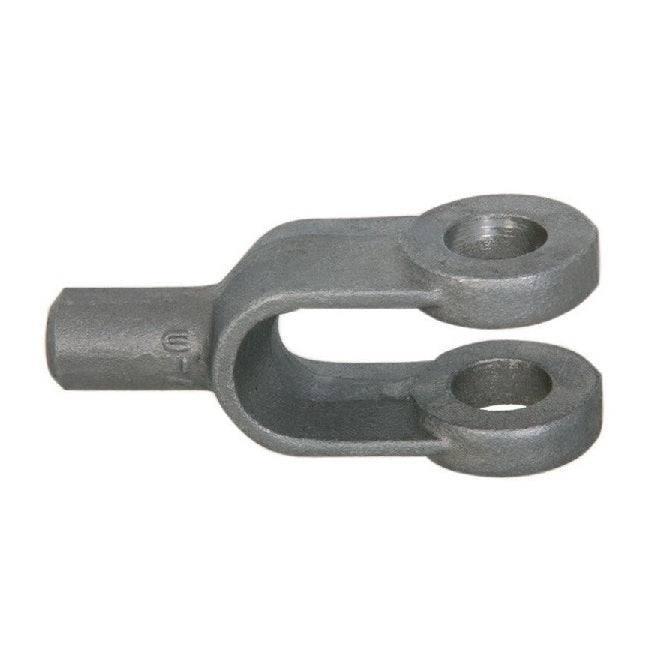

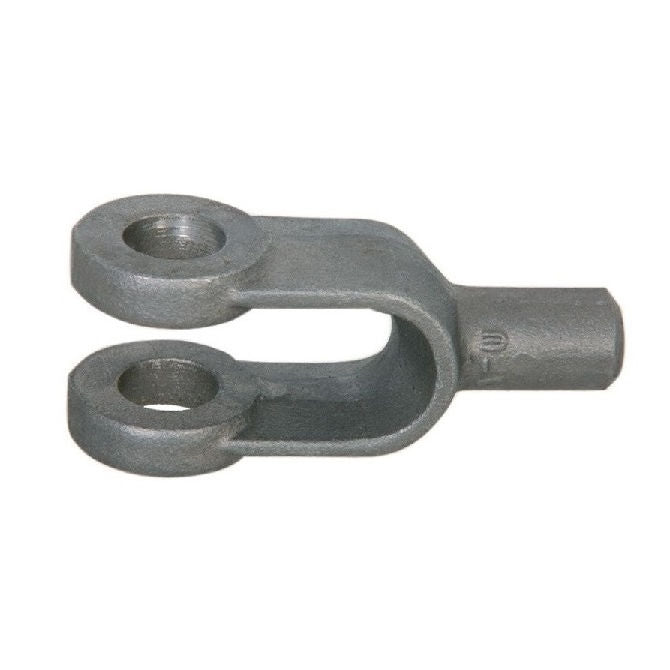

Yoke Ends - BlankBlank Yoke Ends. Linkage connectors with blank ends - no hole.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

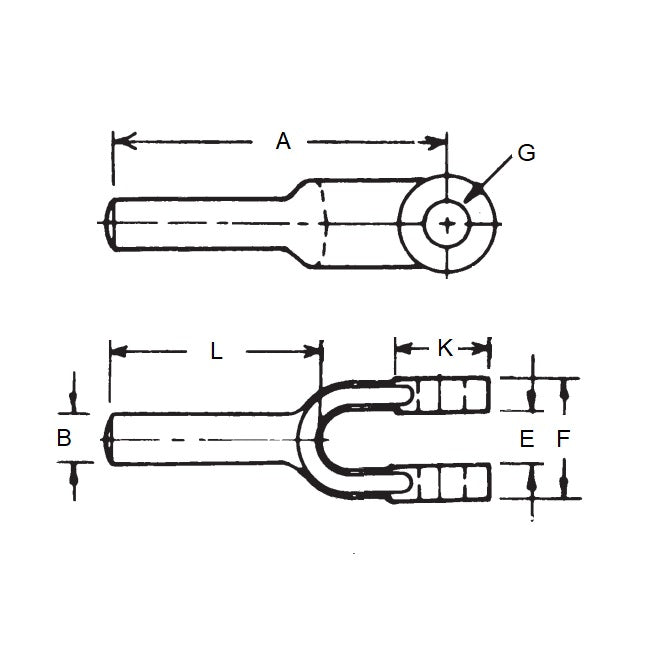

- Effective Length (A)
:
165.100
mm
(Equiv. 6.5 in.) - Hub Diameter (B)
12.700
mm
(Equiv. 0.5 in.) - Gap (E) +/- 0.38
14.290
mm
(Equiv. 0.563 in.) - Width (F) +/- 0.38 14.29 mm
- Hole Size (G) +0.25 12.70 mm
- Stud Height (L) 127 mm
- Housing Diameter (K) 24 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6414K23
